Mag. Sine Plate, 6inL, 6inW, 4-5/8inH, Fine MPN:MSP-66-FP-S1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3364667
Mag. Sine Plate, 6inL, 6inW, 4-5/8inH, Fine

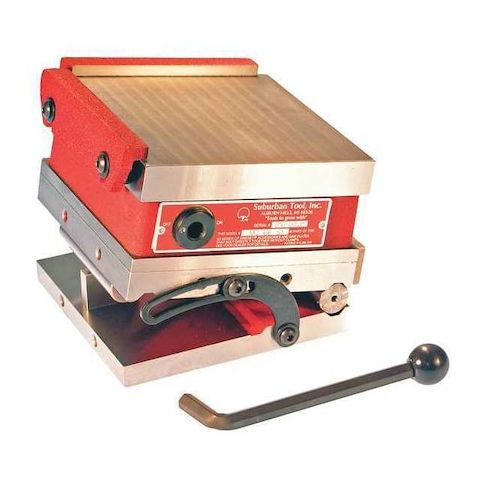

The Suburban Mag. Sine Plate is a precision tool for accurate measurements and layout work. With a tilting angle range of 0-45 degrees, it allows for precise positioning and alignment of components. Its fine pole and ground finish ensure reliable magnetic holding power. The plate's squareness and parallelism are accurate to 0.0002 inches, making it ideal for applications where precision is critical. Use it for layout work, inspection, and testing in industries such as aerospace, automotive, and manufacturing. Its compact size and fine pole make it suitable for use in tight spaces and for measuring small components.
Top product features:
- Fine Pole
- Tilting Angle 0 Degrees to 45 Degrees
- Squareness 0.0002 In.
Top product applications:
- Precision engineering and prototyping
- Machine tool calibration and setup
- Geometric inspection and measurement
Magnetic Sine Plate, Compound No, Precision Yes, Length 6 In., Width 6 In., Height Closed 4-5/8 In., Ground Finish, Tilting Angle 0 Degrees to 45 Degrees , Squareness 0.0002 In., Parallelism 0.0002 In., Features Fine Pole
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 8.50
- Package Height: 4.75
- Package Weight: 43.00
Product info last updated on February 3, 2026 1:22pm UTC
Category: Measuring and Marking Tools
