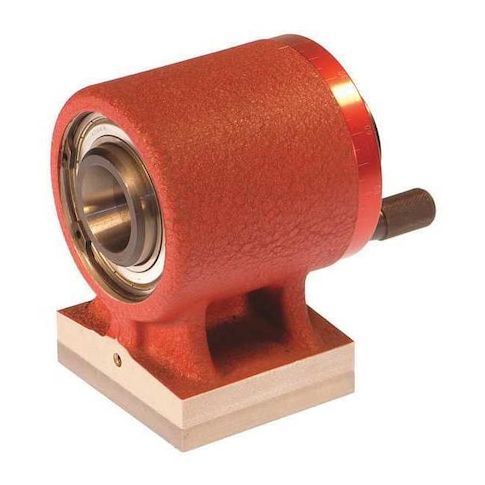

Spin Index Fixture, 5-9/16inH, 6-13/32inL MPN:CM-5C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2436211
Spin Index Fixture, 5-9/16inH, 6-13/32inL
The Spin Index Fixture from Suburban is a versatile tool designed for precise indexing and positioning in various applications. Its 48 indexing positions provide consistent accuracy and repeatability, making it ideal for use in machine shops, prototyping, and production environments. With a height to spindle centerline of 3-5/8 inches and overall dimensions of 5-9/16 inches high and 6-13/32 inches long, this fixture can be used for a range of tasks, including drilling, tapping, and milling. Its compact design and easy-to-use interface make it a valuable addition to any workshop or production line.
Top product features:
- Indexing positions for precise alignment and placement
- Through-hole diameter of 1-1/4 In. for secure and rigid mounting
- 48 indexing positions for repeatable and precise operations
Top product applications:
- Precision engineering and prototyping
- Machining and manufacturing
- Automotive repair and maintenance
Spin Index Fixture, Collet Capacity All 5C Collets, Through Hole Dia. 1-1/4 In., Height to Spindle Centerline 3-5/8 In., Overall Length 6-13/32 In., Overall Width 4-13/32 In., Base Length 3-13/32 In., Base Width 3-3/4 In., Overall Height 5-9/16 In., Number of Indexing Positions 48
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 10.30
- Package Height: 10.70
- Package Weight: 13.90
Product info last updated on January 22, 2026 9:44pm UTC
Category: Machining
