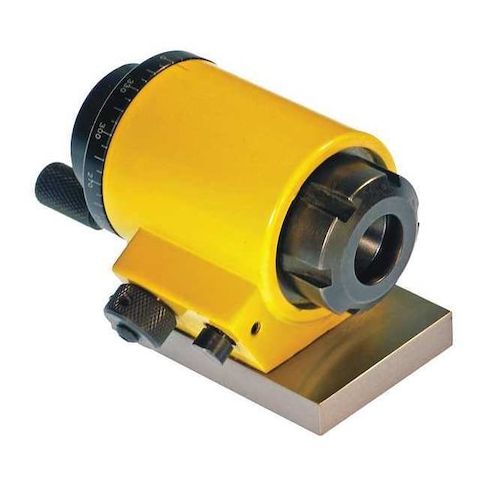

Spin Index Fixture, 3 in. H, 5-3/16 in. L MPN:MM-25R
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2435791
Spin Index Fixture, 3 in. H, 5-3/16 in. L
The Spin Index Fixture from Suburban is a versatile tool for precise indexing and positioning in a variety of applications. Its robust design and 72 indexing positions make it ideal for use in CNC machining, metalworking, and other industries where precision is key. With a through-hole diameter of 5/8 in. and a collet capacity of ER-25, this fixture can accommodate a range of workpiece sizes and types. Its compact size and ease of use make it a valuable addition to any workshop or production line, allowing for efficient and accurate production of complex parts and components.
Top product features:
- It has 72 indexing positions.
- It accommodates all ER-25 collets.
- It has a through-hole diameter of 5/8 inch.
Top product applications:
- High-speed machining of small parts
- Machining of ER collet held components
- Assembly and inspection of small engine components
Spin Index Fixture, Collet Capacity All ER-25 Collets, Through Hole Dia. 5/8 In., Height to Spindle Centerline 1-7/8 In., Overall Length 5-3/16 In., Overall Width 3-1/16 In., Base Length 3-3/16 In., Base Width 2-1/4 In., Overall Height 3 In., Number of Indexing Positions 72
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.50
- Package Height: 7.00
- Package Weight: 4.00
Product info last updated on January 27, 2026 2:23am UTC
Category: Machining
