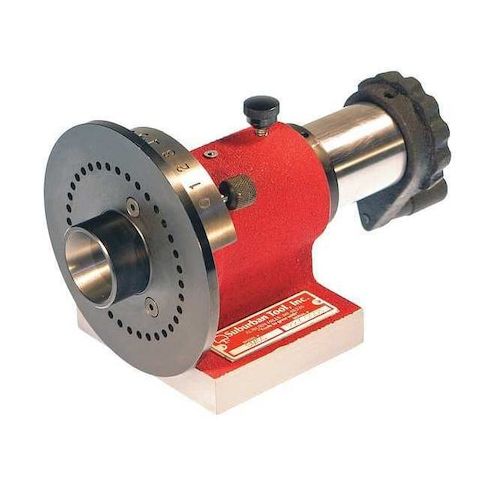

Spin Index Fixture, 5-1/4inH, 9-11/16inL MPN:SM-5C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2434629
Spin Index Fixture, 5-1/4inH, 9-11/16inL
The Spin Index Fixture from Suburban is a versatile tool ideal for precision engineering and manufacturing applications. Its 360 indexing positions provide precise control over rotational movements, making it suitable for tasks such as drilling, tapping, and milling. The fixture's compact design and durable construction enable efficient use in a variety of settings, from prototyping to high-volume production. Its ability to accommodate 5C collets and a through-hole diameter of 1-1/4 inches makes it a valuable addition to any workshop or facility, particularly in industries that require high precision and accuracy.
Top product features:
- It has a collet capacity of all 5C collets
- It can index 360 positions
- It has a through hole diameter of 1-1/4 inches
Top product applications:
- Machining and manufacturing of small to medium-sized parts
- Precision engineering and research and development
- Tool and die making and prototyping
Spin Index Fixture, Collet Capacity All 5C Collets, Through Hole Dia. 1-1/4 In., Height to Spindle Centerline 2-3/4 In., Overall Length 9-11/16 In., Overall Width 5 In., Base Length 3-7/8 In., Base Width 4-1/4 In., Overall Height 5-1/4 In., Number of Indexing Positions 360
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 10.50
- Package Height: 10.80
- Package Weight: 18.00
Product info last updated on February 21, 2026 2:42pm UTC
Category: Machining
