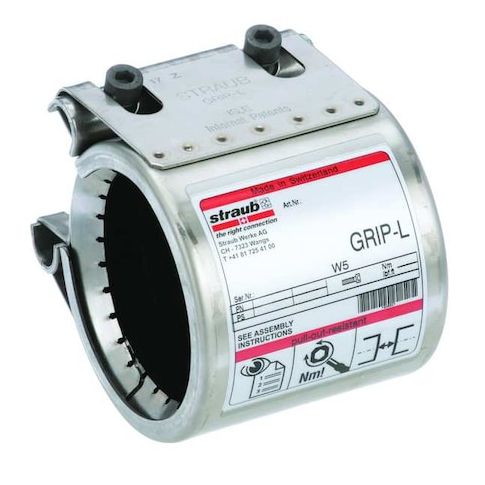

Pipe Coupling, 2 Bolts, 2-1/2" Pipe Sz MPN:G20501-SI
The STRAUB G20501-SI stainless steel pipe coupling is a versatile and reliable connection solution for various fluid transfer applications. Suitable for use with air, natural gas, non-potable water, and propane systems, this coupling provides a secure and leak-resistant seal with its nitrile gasket. Its 316 stainless steel construction ensures corrosion resistance and durability, while its axial movement capabilities allow for easy installation and maintenance. With a maximum operating pressure of 232 psi and a temperature range of -4 to 180 °F, this coupling is ideal for use in a wide range of industries, including oil and gas, HVAC, and industrial manufacturing.
Top product features:
- Material: 316 stainless steel with polished surface for corrosion resistance.
- Includes a nitrile gasket for a secure seal.
- Rated for a maximum operating pressure of 232 psi and a temperature range of -4 to 180 °F.
Top product applications:
- Air systems
- Natural gas systems
- Propane systems
The STRAUB - G20501-SI is a stainless steel pipe coupling designed to connect two pipes or tubes in a straight alignment to allow fluid passage. Constructed from 316 stainless steel with a polished finish, this coupling is compatible with air, natural gas, non-potable water, and propane systems per manufacturer specifications. It includes a nitrile gasket. This coupling allows axial movement within specified limits, rated for a maximum operating pressure of 232 psi and a temperature range of -4 to 180 °F.
Key Features:
- - Material: 316 stainless steel with polished surface for corrosion resistance.
- - Nominal pipe size: 2 1/2 inches.
- - Overall length: approximately 3 11/16 inches.
- - Includes a nitrile gasket.
- - Bolt specifications: two bolts made of 316 stainless steel with 73 mm hex heads.
- - Rated for maximum operating pressure of 232 psi.
- - Temperature range: -4 to 180 °F.
- - Certified to multiple standards including ANSI, ASTM 1476, AWWA C227-07, ISO, and NP-15837/15838.
- - Low lead certified and compliant for applicable standards.
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.60
- Package Height: 2.50
- Package Weight: 1.55
