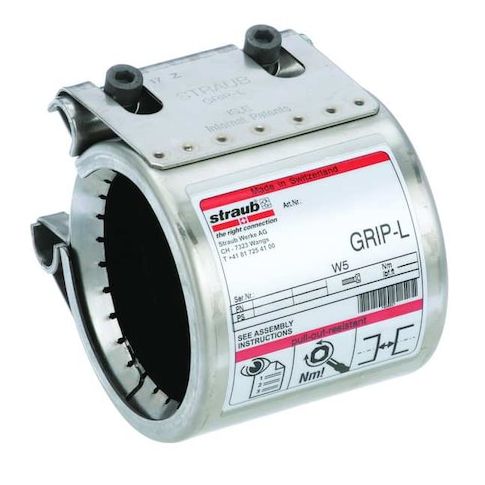

3 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, EPDM Gasket, 232 psi Max Pressure MPN:G20650-SI
3 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, EPDM Gasket, 232 psi Max Pressure
The STRAUB - G20650-SI is a stainless steel Grip L pipe coupling designed to join two pipes in a straight line, providing a continuous flow path. Manufactured from 316 stainless steel with a polished finish, this grooved-style mechanical coupling features a bolted housing and an EPDM sealing gasket for gasket-sealed connections designed to operate within the specified temperature and pressure ranges (temperature -4 to 212 °F
- maximum pressure 232 psi). Allows axial movement to accommodate misalignment within installation configuration. The coupling includes two 6mm hex bolts made of 316 stainless steel and comes with a standard seal.
Key Features:
- - Material: 316 stainless steel pipe fitting and bolts
- - Length: 3-45/64 inches overall
- - Nominal pipe size: 3 inches
- - Seal material: EPDM included
- - Finish: Polished surface
- - Maximum operating pressure: 232 psi
- - Temperature range: -4 to 212 degrees Fahrenheit
- - Number of bolts: 2 with 6mm hex heads
- - Vacuum rating: 28 inches
- - Standards: ASTM 1476, CL2 or CL3, TY2
- - Low Lead Certified and compliant
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 4.70
- Package Height: 3.90
- Package Weight: 2.73
Product info last updated on February 12, 2026 7:21pm UTC
Category: Pipes, Valves and Fittings
