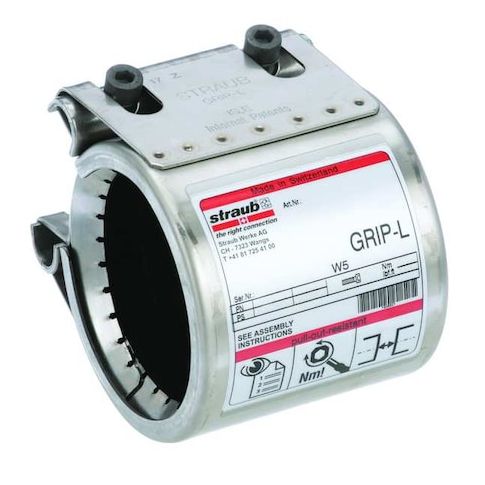

4 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, Axial Movement, EPDM Seal MPN:G20900-SI
Join pipes in a straight line with the STRAUB - G20900-SI, a 4-inch Grip L pipe coupling designed for continuous flow paths. Constructed from 316 stainless steel with a polished finish, this coupling provides corrosion resistance and leak-tight connections. It accommodates axial movement and misalignment, making it ideal for systems conveying air, chemicals, fuel, gas, oil, and water. This coupling operates within a wide temperature range and withstands high pressures, ensuring reliable performance in various applications, including chemical processing, oil and gas, and water treatment. With its durable design and low lead compliance, it's perfect for potable water use.
Top product features:
- 316 stainless steel with polished finish for corrosion resistance
- Accommodates axial movement and misalignment
- Standard EPDM gasket for leak-tight connections
Top product applications:
- Air systems
- Chemical product transfer systems
- Fuel and gas distribution systems
The STRAUB - G20900-SI is a 4-inch Grip L pipe coupling constructed from 316 stainless steel, designed to join two pipes in a straight line to create a continuous flow path. It uses a bolted housing and an EPDM elastomeric gasket that forms a leak-tight seal without welding under the specified operating conditions. This coupling accommodates axial movement and misalignment and maintains a leak-tight connection within the product's stated temperature and pressure ratings for systems conveying air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water. It operates within a temperature range of -4 Degrees to 212 Degrees F and withstands a maximum internal pressure of 232 psi.
Key Features:
- - Material: 316 stainless steel with polished finish for corrosion resistance.
- - Nominal pipe size: 4 inches.
- - Overall length: approximately 3-11/16 inches.
- - Seal included: standard EPDM gasket for leak-tight connections.
- - Bolt specifications: two 6mm hex bolts made of 316 stainless steel.
- - Movement type: axial to allow limited pipe movement.
- - Certified low lead compliance for potable water use.
- - Meets ASTM 1476, TY2, CL2 or CL3 standards.
- - Vacuum rating up to 28 inches of mercury.
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.70
- Package Height: 3.80
- Package Weight: 3.23
