1-1/4 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, Axial Movement, EPDM Seal MPN:G20200-SI
1-1/4 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, Axial Movement, EPDM Seal

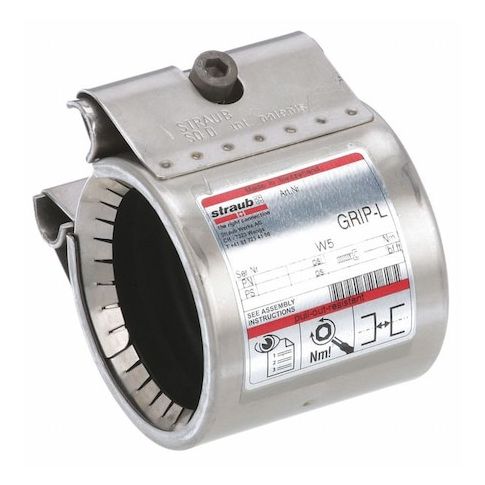

The STRAUB - G20200-SI is a stainless steel Grip L pipe coupling designed to join two pipes or tubes in a straight line, creating a continuous flow path. Constructed from 316 stainless steel with a polished finish, this coupling includes an EPDM gasket to form a seal without welding up to the maximum rated operating pressure of 232 psi. It accommodates limited axial movement and misalignment, operating within a temperature range of -4 to 212 degrees Fahrenheit and a maximum pressure of 232 psi. Compatible with air, water, hydrocarbons, and chemical products within the specified temperature and pressure limits.
Key Features:
- - Material grade: 316 stainless steel with polished finish for corrosion resistance
- - Nominal pipe size: 1-1/4 inches
- - Overall length: approximately 2-3/8 inches (2 13/32 inches fitting length)
- - Includes EPDM gasket
- - Bolted housing with two 6mm hex bolts made of 316 stainless steel
- - Maximum operating pressure: 232 psi
- - Temperature range: -4 to 212 degrees Fahrenheit
- - Compliant with low lead certification standards
- - Conforms to ASTM 1476, TY2, CL2 or CL3 standards
- - Vacuum rating: 28 inches of Hg
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.70
- Package Height: 2.60
- Package Weight: 0.83
Product info last updated on February 1, 2026 11:51pm UTC
Category: Pipes, Valves and Fittings
