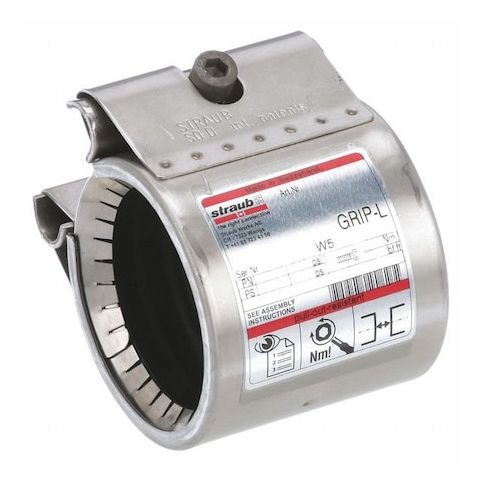

2 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, Axial Movement, EPDM Seal MPN:G20450-SI
The STRAUB - G20450-SI is a high-performance 2-inch stainless steel Grip L Pipe Coupling designed for demanding applications. Constructed from durable 316 stainless steel with a polished finish, it joins two pipes in a straight-line configuration, accommodating limited axial movement with its grooved mechanical design. Ideal for conveying air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water, this coupling is certified for potable water systems and operates at pressures up to 232 psi and temperatures from -4 to 212°F. Its EPDM gasket ensures a reliable seal, making it suitable for various industries, including chemical processing, oil and gas, and water treatment.
Top product features:
- 2 inches nominal pipe size for compatibility with standard pipe fittings
- 316 stainless steel construction for resistance to corrosion and durability
- Polished finish for reduced friction and ease of cleaning
Top product applications:
- Conveying air
- Conveying chemical products
- Conveying fuel
The STRAUB - G20450-SI is a stainless steel Grip L Pipe Coupling that joins two pipes in a straight-line configuration. Constructed from 316 stainless steel with a polished finish, it is rated for conveying air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water. The coupling includes an EPDM gasket and accommodates limited axial movement with its grooved mechanical design. It is low lead certified, compliant for potable water systems, and rated for operation at pressures up to 232 psi and temperatures from -4 to 212 degrees Fahrenheit. Key Features:
- - Nominal pipe size: 2 inches
- - Overall length: 3 inches
- - Material: 316 stainless steel
- - Bolt material: 316 stainless steel, size 6mm Hex
- - Number of bolts: 2
- - Seal material: EPDM gasket included
- - Finish: Polished surface
- - Intended for use with air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water
- - Maximum operating pressure: 232 psi
- - Temperature range: -4 to 212 degrees Fahrenheit
- - Vacuum rating: 28 inches
- - Standards: ASTM 1476, TY2, CL2 or CL3
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.40
- Package Height: 3.20
- Package Weight: 1.18
