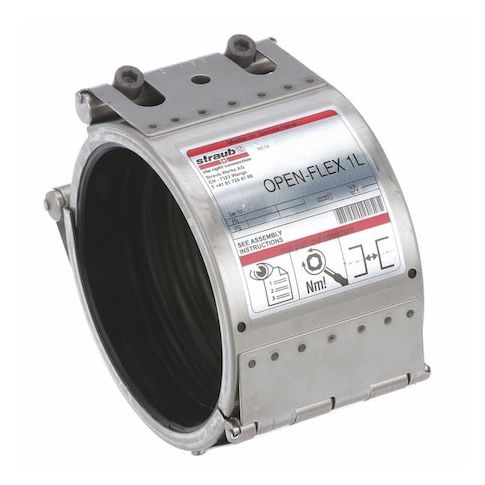

3 in 304 Stainless Steel Open Flex Coupling, Axial Movement, EPDM Gasket, 232 psi Max Pressure MPN:STR35351
The STRAUB - STR35351 is a high-quality, 304 stainless steel open flex wrap-around pipe coupling designed for joining two pipes or tubes in a straight line, ensuring a continuous flow path. Suitable for use with air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water, this coupling accommodates axial movement and features an internal EPDM gasket for a secure seal. With a maximum operating pressure of 232 psi and a service temperature range of -4°F to 212°F, it's ideal for applications in chemical processing, oil and gas, and other industries where reliability and durability are crucial.
Top product features:
- Accommodates axial movement
- Includes an internal EPDM gasket to form a seal
- Constructed to ASTM 1476, TY2, CL2 or CL3 standards for reliability
Top product applications:
- Joining two pipes or tubes in a straight line to enable a continuous flow path
- Connecting air, chemical products, fuel, gas, oil, and water lines
- Accommodating axial movement in applications where pipe expansion is necessary
The STRAUB - STR35351 is an open flex wrap-around pipe coupling designed to join two pipes or tubes in a straight line, enabling a continuous flow path. Manufactured from 304 stainless steel with a polished finish, it includes an internal EPDM gasket to form a seal using an EPDM gasket. The coupling accommodates axial movement and is compatible with the listed media: air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water. It is equipped with two galvanized steel bolts sized between 1/2" and 3/4" for fastening with bolts sized 1/2" to 3/4" in accordance with specifications and complies with applicable low lead standards. Key Features:
- - Nominal pipe size: 3 inches
- - Overall length: approximately 3.69 inches
- - Maximum operating pressure: 232 psi
- - Service temperature range: -4°F to 212°F
- - Includes an EPDM seal
- - Constructed to ASTM 1476, TY2, CL2 or CL3 standards
- - Color: silver
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.70
- Package Height: 3.90
- Package Weight: 2.27
