3/4 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, Axial Movement, EPDM Seal MPN:G20000-SI
3/4 in 316 Stainless Steel Grip L Pipe Coupling, Polished Finish, Axial Movement, EPDM Seal

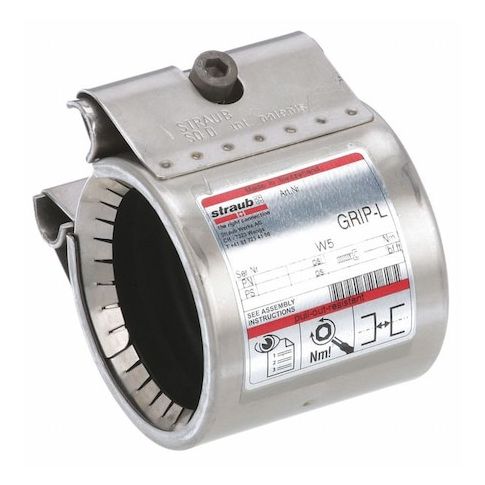

The STRAUB - G20000-SI is a Grip L pipe coupling made from 316 stainless steel that connects two 3/4-inch pipes in-line to create a continuous flow path. This mechanical coupling uses a bolted housing and an EPDM elastomer gasket to provide a pressure-tight seal via bolted housing and EPDM elastomer gasket. It allows limited axial movement and misalignment within installation guidelines, and is intended for use with media within the manufacturer's specifications. EPDM elastomer gasket included for sealing.
Key Features:
- - Nominal pipe size: 3/4 inch
- - Material grade: 316 stainless steel for corrosion resistance
- - Maximum operating pressure: 232 psi
- - Operating temperature range: -4 to 212 Degrees F
- - Bolt size: 5mm hex, with two bolts made of 316 stainless steel
- - Seal material: EPDM elastomer gasket included
- - Overall length: approximately 1 3/4 inches (1-51/64")
- - Color: Silver with polished finish
- - Complies with ASTM 1476, TY2, CL2 or CL3 standards
- - Low lead certified and compliant for potable water systems
- - Vacuum rating: 28 inches Hg
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.30
- Package Height: 2.00
- Package Weight: 0.38
Product info last updated on February 10, 2026 12:11pm UTC
Category: Pipes, Valves and Fittings
