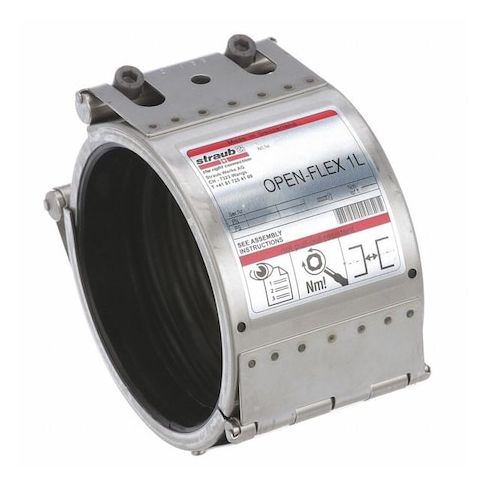

5 in 304 Stainless Steel Open Flex Coupling, Axial Movement, EPDM Gasket, 232 psi Max Pressure MPN:STR35901
The Straub STR35901 5-inch open flex coupling is a reliable and versatile solution for joining stainless steel pipes in straight-line applications. Designed for use in a variety of industries, including chemical processing, oil and gas, and power generation, this coupling accommodates axial movement and features a polished 316-grade stainless steel finish for maximum durability. With a maximum operating pressure of 232 psi and a temperature range of -4 to 212°F, this coupling is suitable for applications involving air, chemicals, fuels, gases, and water. Its low-lead certification and vacuum rating make it a safe and compliant choice for a range of demanding applications.
Top product features:
- Polished finish for reduced friction and improved flow
- Accommodates axial movement for flexibility and adaptability in pipe connections
- EPDM gasket seal for reliable pressure containment up to 232 psi
Top product applications:
- Air
- Chemical products
- Fuel
The STRAUB - STR35901 is an open flex wrap-around coupling designed for joining 5-inch stainless steel pipes in a straight line. Made from 316-grade stainless steel, it features a polished finish and a seal designed for service up to 232 psi with an EPDM gasket. Operating temperature range: -4 to 212 °F
- maximum operating pressure: 232 psi
- material: 316 stainless steel
- gasket: EPDM. This coupling accommodates axial movement and is compatible with various applications, including air, chemical products, fuel, gas, oil, other hydrocarbons, solids, and water. It complies with low-lead certification standards. Key Features:
- - Material: 316 stainless steel with polished finish
- - Nominal pipe size: 5 inches
- - Coupling length: 4 13/64 inches
- - Includes EPDM gasket seal (standard type)
- - Bolt size ranges from 1/2 inch to 3/4 inch using galvanized steel bolts (2 bolts per coupling)
- - Suitable for axial movement type connections
- - Maximum operating pressure: 232 psi
- - Temperature range: -4 to 212 degrees Fahrenheit
- - Meets ASTM 1476, TY2, CL2 or CL3 standards
- - Vacuum rating: 28 inches
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 6.90
- Package Height: 4.50
- Package Weight: 4.17
