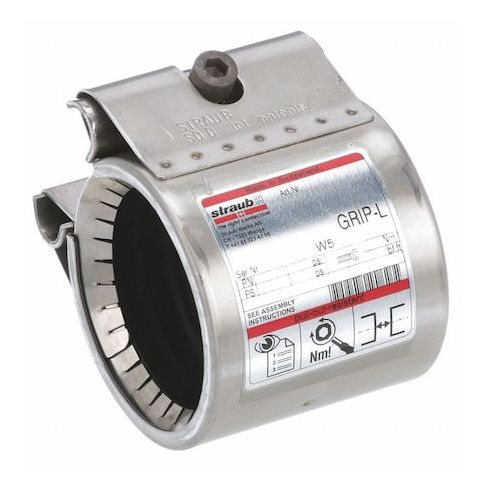

1 in 316 Stainless Steel Grip L Pipe Coupling, Axial Restraint, Polished Finish, EPDM Seal MPN:G20100-SI
The Straub G20100-SI is a high-performance stainless steel Grip L pipe coupling designed for joining 1-inch pipes in a straight line, creating a continuous flow path for air, water, and hydrocarbon fluids. Constructed from durable 316 stainless steel with a polished finish, this coupling accommodates axial movement and slight misalignment, ensuring a leak-tight connection. Ideal for applications in chemical processing, oil and gas, and water treatment, this coupling meets low-lead certification and applicable potable water standards. Its compact design and EPDM gasket ensure a reliable and efficient connection, making it a valuable addition to any industrial piping system.
Top product features:
- Constructed from 316 stainless steel with a polished silver finish
- Accommodates axial movement and slight misalignment between pipes
- Includes an EPDM gasket to provide a leak-tight connection
Top product applications:
- Air handling systems
- Water treatment and distribution systems
- Hydrocarbon fluid processing and transfer systems
The STRAUB - G20100-SI is a stainless steel Grip L pipe coupling designed to join two 1-inch pipes in a straight line to create a continuous flow path. Constructed from 316 stainless steel with a polished silver finish, this coupling is designed to convey air, water, and hydrocarbon fluids within the design specifications (max operating pressure 232 psi, temperature range -4 to 212 °F) using 316 stainless steel and EPDM gasket. It accommodates axial movement and slight misalignment between pipes. Low-lead certified and compliant with applicable potable water standards.
Key Features:
- - Material: 316 stainless steel with polished finish
- - Nominal pipe size: 1 inch
- - Overall length: 1-51/64 inches (approximately 1.75 inches)
- - Maximum operating pressure: 232 psi
- - Temperature range: -4 to 212 °F
- - EPDM gasket included to provide a leak-tight connection
- - Bolt material: 316 stainless steel, 5mm hex size, 2 bolts
- - Standards: ASTM 1476, CL2 or CL3, TY2
- - Vacuum rating: 28 inches Hg
- - Movement type: Axial
Additional Information
- Country of Origin: CH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 2.00
- Package Weight: 0.44
