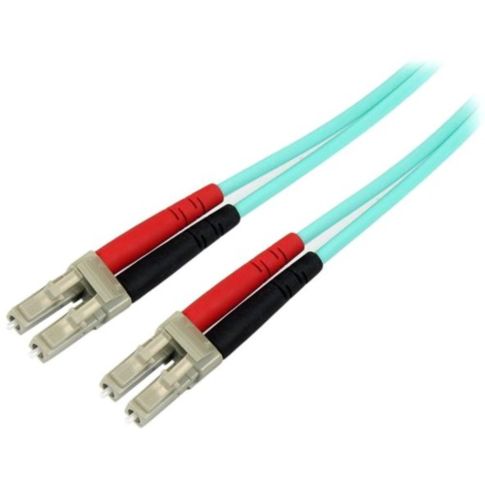

StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord MPN:450FBLCLC2
SKU
312-918093
StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord MPN:450FBLCLC2
Upgrade your network infrastructure with this high-performance 2m LC/UPC to LC/UPC OM4 multimode fiber optic cable from StarTech.com. Ideal for use in industrial settings, schools, and central offices, this cable features laser-optimized multimode fiber for optimal performance in high-speed applications. The OM4 (50/125) 3500MHz multimode fiber ensures low insertion loss and backward compatibility with existing 50/125 equipment. With its protective, crush-resistant fiber sheath and LSZH, flame-retardant jacket, this cable provides reliable and secure data transmission, making it perfect for applications such as data centers, server rooms, and high-speed network connections.
Top product features:
- Laser-optimized multimode fiber for improved performance in industrial settings
- Protective, crush-resistant fiber sheath to improve tensile strength
- Backward compatible with existing 50/125 equipment
Top product applications:
- Industrial settings
- Schools
- Central offices
SPECS: 2m (6.6ft) Color: Aqua (OM4); LC/LC UPC; 50/125µm Core/Cladding; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz-km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded connector strain reliefs minimizes wear from bending; Protective Aramid fiber for increased tensile strength SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and toxic fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards WIDE COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable is immune to EMI and supports up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors enable quick visual identification of polarity and conversion to simplex cabling
Additional Information
- Country of Origin: CN
- UNSPSC Code: 26121609
- UNSPSC Commodity: Network cable
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 9.00
- Package Width: 8.00
- Package Height: 0.25
- Package Weight: 0.10
Related ASINs: B0711VWSMQ
Product info last updated on January 7, 2025 8:44am UTC Category: Networking and Cables
