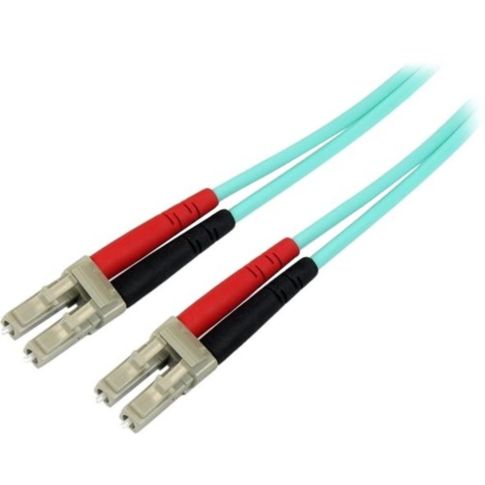

StarTech.com Aqua OM4 Duplex Multimode Fiber - 3m/ 9ft - 100 Gb - Aqua MPN:450FBLCLC3
SKU
312-599943
StarTech.com Aqua OM4 Duplex Multimode Fiber - 3m/ 9ft - 100 Gb - Aqua MPN:450FBLCLC3
Upgrade your network infrastructure with StarTech.com's Aqua OM4 Duplex Multimode Fiber Cable, designed for high-density applications such as SANs, data servers, and SFP+ connections. This 3m/9ft cable supports 1/10/40/100 Gbps Ethernet and features a protective Aramid fiber sheath for improved tensile strength and crush resistance. With its low insertion loss and high modal bandwidth, this OM4 fiber cable delivers reliable and fast data transmission, making it ideal for data centers, cloud storage, and other high-speed network environments. Its durable construction and full lifetime warranty ensure a long-lasting and hassle-free connection.
Top product features:
- The cable features a 50/125 micron fiber core and cladding that is immune to electromagnetic interference (EMI).
- The cable has a protective Aramid fiber sheath that provides improved tensile strength and crush resistance.
- The LC/LC connectors have UPC polished ceramic ferrules that result in insertion loss below 0.3dB.
Top product applications:
- SANs (Storage Area Networks)
- Data servers
- SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10
SPECS: 3m (9.8ft); Color: Aqua (OM4); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life~ QUALITY CONSTRUCTION: 50/125inm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes if combusted; Attenuation value under 2.3dB/km meets or exceeds industry standards COMPATIBILITY: OM4 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10 OM4 FIBER CABLE: OM4 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
Features
- Brand Name: StarTech.com
- Cable Type: Fiber Optic
- Cable USAge Type: Patch
- Color: Aqua
- Cord Length: 9-27/32 ft
- Device Supported: Network Device; Transceiver
- Eco Label Standard: RoHS
- Fiber Optic Mode: Multi
- Gender (End 1): Male
- Gender (End 2): Male
- Manufacturer: STARTECH.COM
- Maximum Data Transfer Rate: 13421.7728 MB/s
- Product Line: StarTech.com
- Quantity: 1
- Total Quantity: 1 Cables
- Warranty: Full Lifetime
Additional Information
- Country of Origin: CN
- UNSPSC Code: 26121609
- UNSPSC Commodity: Network cable
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 5.20
- Package Width: 5.20
- Package Height: 0.25
- Package Weight: 0.60
Product info last updated on January 7, 2025 8:35am UTC
Category: Networking and Cables
