StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C MPN:POEINJ1G90W
SKU
312-3842207

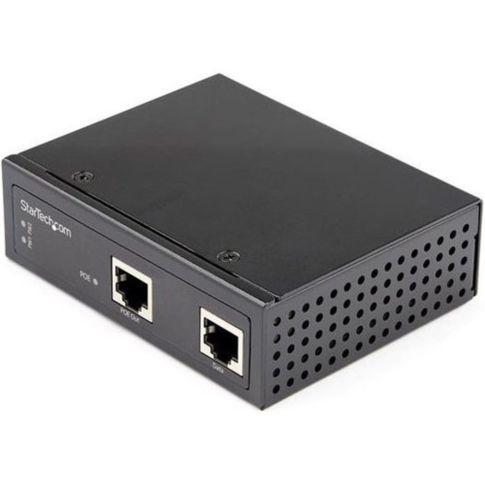

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 48V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C MPN:POEINJ1G90W
This Industrial Gigabit PoE Injector provides high-speed power over Ethernet for demanding applications like high-power wireless access points and tilt-and-pan cameras. With a 90W power budget, it supports Type 3 and Type 4 PoE/Ultra/UPoE applications. Its robust design features a rugged IP-30 aluminum housing and can operate in temperatures ranging from -40C to 75C, making it ideal for harsh environments. The injector is also compatible with various standards, including Cisco uPoE, Bosch, and AXIS, ensuring seamless integration with existing infrastructure. Its compact design and DIN/Wall mountability make it easy to deploy and manage.
Top product features:
- High speed 90W power output for Type 3 and Type 4 PoE/Ultra/UPoE applications
- Auto-negotiated power output up to 90W
- Redundant power input for reliable operation
Top product applications:
- Tilt and pan cameras
- High power IEEE 802.11ax wireless access points
- Cisco uPoE, Bosch & AXIS devices
THE IT PROs CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS
Features
- Brand Name: StarTech.com
- Color: Black
- Eco Label Standard: EU RoHS
- End of Life Manual Availability: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2; Registration, Evaluation, Authorization and Restriction of Chemicals (REACH); Waste Electrical and Electronic Equipment Directive (WEEE)
- Eu Rohs Declaration Url: https://media.startech.com/cms/pdfs/poeinj1g90w_rohs.pdf
- Height: 4-1/10 in.
- Input Ports: 1 x Gigabit Ethernet
- Length: 3-2/10 in.
- Manufacturer: STARTECH.COM
- Model: POEINJ1G90W
- Output Ports: 1 x PoE+
- Protection Type: Surge Protection
- Quantity: 1
- Reach Declaration Url: https://media.startech.com/cms/pdfs/poeinj1g90w_rohs.pdf
- Reach Free of Svhc: Yes
- Total Quantity: 1 Power Injectors
- Warranty: 2-Year Limited
- Weee Statement: https://media.startech.com/cms/pdfs/poeinj1g90w_weee.pdf
- Width: 1-3/10 in.
Additional Information
- Country of Origin: TW
- UNSPSC Code: 39121017
- UNSPSC Commodity: Power distribution units PDUs
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 10.00
- Package Width: 7.30
- Package Height: 3.70
- Package Weight: 0.90
Related ASINs: B08KYHBCX4
Product info last updated on January 7, 2025 8:30am UTC Category: Computer Cards and Components
