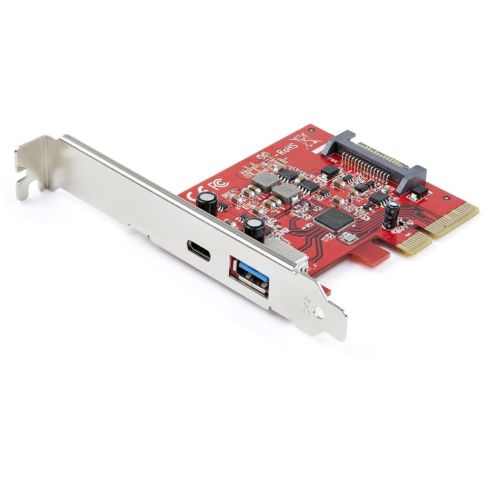

StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card Adapter - USB 3.1 Gen 2 PCI Express Expansion Ad - PEXUSB311AC3 MPN:PEXUSB311AC3
SKU
312-3738786
StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card Adapter - USB 3.1 Gen 2 PCI Express Expansion Ad - PEXUSB311AC3 MPN:PEXUSB311AC3
Upgrade your system with the StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card Adapter, perfect for adding high-speed USB ports to your desktop or server. This adapter supports USB 3.2 Gen 2 speeds, providing up to 10Gbps per port, ideal for connecting external storage devices like SSDs, HDDs, and NVMe drives. With supplemental power via SATA, you can connect devices that require more power, and with UASP support, you'll enjoy optimized performance. Install it in a PCIe 3.0 x4 slot and enjoy compatibility with Windows, Linux, and macOS, making it perfect for professionals, gamers, and anyone looking to future-proof their setup.
Top product features:
- Supports USB Attached SCSI Protocol (UASP) to optimize USB performance with external storage devices
- Provides up to 5V 3A/15W supplemental power to the USB ports via the SATA power supply
- Maintains maximum bandwidth even when mixed-speed devices are connected, supporting Multiple INs and 10Gbps per port
Top product applications:
- External storage devices such as SSDs, HDDs, and NVMe drives
- USB peripherals such as keyboards, mice, and printers
- Virtual reality (VR) and augmented reality (AR) headsets and controllers
THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty & free lifetime 24 hour support on this dual port USB-A & USB-C PCI Express Host Controller card w/ full & low profile bracket incl. POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives COMPATIBILITY: Installs in full or low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/PCI-e 2.0); Windows/Linux/macOS auto driver install (Windows 8 & up); Works with USB 3.2/3.1/3.0/2.0 HIGH PERFORMANCE: USB 3.2 Gen 2 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C Upgraded version of our popular card PEXUSB311AC2
Features
- Brand Name: StarTech.com
- Cord Length: 4/10 ft
- Depth: 4-7/10 in.
- Dimensions: 7/10 in. X 3-2/10 in. X 4-7/10 in.
- Eco Label Standard: EU RoHS
- Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2; Registration, Evaluation, Authorization and Restriction of Chemicals (REACH); Waste Electrical and Electronic Equipment Directive (WEEE)
- Height: 7/10 in.
- Manufacturer: STARTECH.COM
- Operating System Supported: Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Windows Server 2008 R2; Windows Server 2012; Windows Server 2016; Windows Server 2019; Windows Server 2022; Linux 3.5; Mac OS X 10.13 High Sierra; Mac OS X 10.14 Mojave; Mac OS X 10.15 Catalina; Mac OS X 11.0 Big Sur; Mac OS X 12.0 Monterey; Mac OS X 13.0 Ventura
- Quantity: 1
- Total Quantity: 1 USB Hubs
- Warranty: 2-Year Limited
- Width: 3-2/10 in.
Additional Information
- Country of Origin: CN
- UNSPSC Code: 43211609
- UNSPSC Commodity: Universal serial bus hubs or connectors
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 6.70
- Package Width: 5.60
- Package Height: 1.20
- Package Weight: 0.27
Product info last updated on January 7, 2025 8:30am UTC
Category: Networking and Cables
