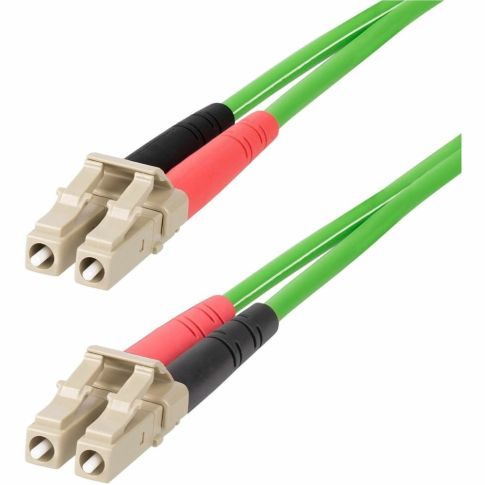

StarTech.com 15m (49.2ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex Zipcord, 40G/100G, LSZH Fiber Jumper Cord MPN:LCLCL-15M-OM5-FIBER
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
312-2264093
StarTech.com 15m (49.2ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex Zipcord, 40G/100G, LSZH Fiber Jumper Cord MPN:LCLCL-15M-OM5-FIBER
Upgrade your network with StarTech.com's 15m OM5 multimode fiber optic cable, designed for 40G/100G networks. Ideal for high-density installations, this cable features a bend insensitive fiber core, Aramid-reinforced jacket, and LC/LC-UPC connectors for improved return loss. With its wide compatibility and extended wavelength support, this cable enables SWDM for greater channel isolation and enhanced performance capacity. Suitable for fiber switches, servers, SANs, and SFP+/QSFP+/QSFP28 modules, this cable is perfect for data centers, enterprises, and cloud computing environments where high-speed data transfer is critical.
Top product features:
- LC/LC-UPC ends for improved return loss over PC polish
- Zipcord design, color-coded connectors for polarity
- Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 6cm and 3cm when unloaded
Top product applications:
- Data Center Fiber Connectivity
- Fiber Switch Installation
- SAN (Storage Area Network) Configuration
SPECS: 15m (49.2ft); OM5; LC/LC (UPC); 50/125µm; 850-953nm VCSEL/1300nm LED; Modal Bandwidth: 4700MHz.km (850nm), 2470MHz.km (953nm); Insertion Loss: 0.3dB; Return Loss: 30dB; Cable OD: 2.9mm; Bend Radius: 6cm/2.4in (loaded), 3cm/1.2in (unloaded) QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Zipcord design, color-coded connectors for polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 6cm and 3cm when unloaded SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 2.4dB/km meets or exceeds industry standards WIDE COMPATIBILITY: OM5 multimode cable supports 10/40/100G networks; Backward compatible with OM4/OM3; High micro-bending resistance facilitates tight bends in intricate installations, ideal for fiber switches/servers, SANs, and SFP+/QSFP+/QSFP28 modules OM5 FIBER CABLE: OM5 LOMMF Cable is optimized for advanced 40/100Gbps fiber networks; Extended 850-953nm wavelength support enables SWDM (short wavelength division multiplexing) for greater channel isolation, enhancing performance capacity beyond OM4 cables
Features
- Brand Name: StarTech.com
- Cable Type: Fiber Optic
- Cable USAge Type: Patch
- Color: Green
- Cord Length: 49-7/32 ft
- Device Supported: Network Device; Switch; Server
- Fiber Optic Mode: Multi
- Fiber Type: Duplex
- Gender (End 1): Male
- Gender (End 2): Male
- Manufacturer: STARTECH.COM
- Maximum Data Transfer Rate: 13421.7728 MB/s
- Product Line: StarTech.com
- Quantity: 1
- Total Quantity: 1 Cables
- Warranty: Full Lifetime
Additional Information
- Country of Origin: CN
- UNSPSC Code: 45121610
- UNSPSC Commodity: Camera cables
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 1.30
- Package Weight: 0.26
Product info last updated on February 13, 2026 12:54am UTC
Category: Networking and Cables
