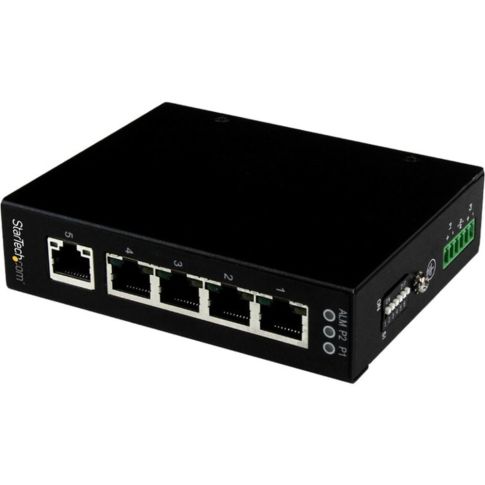

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail/Wall-Mountable MPN:IES51000
SKU
312-208137
StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail/Wall-Mountable MPN:IES51000
This rugged industrial Ethernet switch is designed to thrive in harsh environments, operating from -40°C to 75°C and with IP30-rated protection against dust and water. Its compact metal enclosure allows for easy DIN rail or wall-mounting, making it perfect for industrial control systems, machine automation, and other applications where space is limited. With 5 Gigabit Ethernet ports and support for jumbo frames, this switch delivers fast and reliable connectivity for high-bandwidth applications. Its redundant power and alarm relay ensure uptime and alert you to potential issues, making it an ideal solution for demanding industrial settings.
Top product features:
- Speed / duplex auto-negotiation and auto-MDIX detection on each port
- IEEE 802.3az Energy-Efficient Ethernet
- Up to 9K jumbo frame support
Top product applications:
- Industrial Automation
- Data Center Networking
- Medical Device Connectivity
Speed / duplex auto-negotiation and auto-MDIX detection on each port IEEE 802.3az Energy-Efficient Ethernet Extended operating temperature range (-40?C to 75?C) IP30-rated DIN rail and wall-mountable metal enclosure Supports IEEE 802.3x flow control and back-pressure Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay Overcurrent and reverse polarity protection Up to 9K jumbo frame support 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
Features
- Brand Name: StarTech.com
- Depth: 4-4/10 in.
- Dimensions: 1-1/10 in. X 3-1/2 in. X 4-4/10 in.
- Eco Label Standard: RoHS
- End of Life Manual Availability: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2; Registration, Evaluation, Authorization and Restriction of Chemicals (REACH); Waste Electrical and Electronic Equipment Directive (WEEE)
- Eu Rohs Declaration Url: https://media.startech.com/cms/pdfs/ies51000_rohs.pdf
- Height: 1-1/10 in.
- Manufacturer: STARTECH.COM
- Network (RJ-45): Yes
- Networking Standards: IEEE 802.3af; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3
- Number of Network (RJ-45) Ports: 5
- Number of Ports: 5
- Product Material: Steel
- Quantity: 1
- Reach Declaration Url: https://media.startech.com/cms/pdfs/ies51000_rohs.pdf
- Reach Free of Svhc: Yes
- Total Quantity: 1 Switches
- Warranty: 2-Year Limited
- Weee Statement: https://media.startech.com/cms/pdfs/ies51000_weee.pdf
- Width: 3-1/2 in.
Additional Information
- Country of Origin: CN
- UNSPSC Code: 43222612
- UNSPSC Commodity: Network switches
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 7.00
- Package Width: 5.60
- Package Height: 3.10
- Package Weight: 1.14
Product info last updated on January 6, 2025 12:06am UTC
Category: Networking and Cables
