Telescoping Gage Set, 5/16-6 In, 6 Pc MPN:S579HZ
Free Shipping
In Stock
This Starrett S579HZ Telescoping Gage Set is a versatile and accurate tool for measuring internal dimensions of cylindrical objects. Its range of 5/16 in to 2 1/8 in and depth of up to 6 inches makes it suitable for a variety of applications, including precision engineering, quality control, and inspection. The set's polished steel construction and double-arm plunger gauge plungers ensure precise measurements, while the carrying case keeps it organized and portable. Ideal for professionals and hobbyists alike, this gage set is a valuable addition to any toolbox, providing convenience, accuracy, and versatility in a compact and durable package.
Top product features:
- It has a range of 5/16 in to 2 1/8 in and can reach up to 6 inches deep.
- It comes with double-arm plunger gauge plungers.
- It is constructed from polished steel.
Top product applications:
- Internal Dimension Measurement for Cylindrical Objects
- Toolbox Organization and Portability
- Precision Machining and Inspection

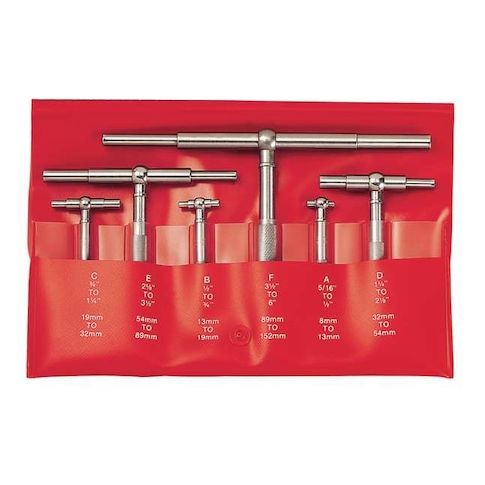

The STARRETT S579HZ is a 6-piece telescoping gauge set used for measuring internal dimensions from 5/16 in. to 6 in. (8 mm to 150 mm). Each gage has two telescoping contacts with double-arm plungers, and the handles are rigidly attached to the contact plungers for self-centering action. The set is made of steel with a polished steel finish and includes a case for storage.
Key features of the STARRETT S579HZ Telescoping Gauge Set:
- Measurement range: Covers 5/16 in. to 6 in. / 8 mm to 150 mm.
- 6-piece set: Includes individual gages for 5/16 in. to 1/2 in. (8 mm to 13 mm), 1/2 in. to 3/4 in. (13 mm to 19 mm), 3/4 in. to 1 1/4 in. (19 mm to 32 mm), 1 1/4 in. to 2 1/8 in. (32 mm to 54 mm), 2 1/8 in. to 3 1/2 in. (54 mm to 89 mm), and 3 1/2 in. to 6 in. (89 mm to 150 mm).
- Double-arm plunger design: Uses two telescoping contacts for internal measurements.
- Self-centering handles: Handles are rigidly attached to the plungers and center automatically during use.
- Spring tension and locking plungers: Constant spring tension provides uniform contact pressure, and both plungers can be locked at the selected setting.
- Ground contact ends: Hardened, ground ends with a radius provide two-point contact and clearance in small holes.
- Maximum measuring depth: 2-3/8 in.
- Replaceable handle: Yes.
- Includes case: Supplied with a storage case.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 5.20
- Package Height: 0.75
- Package Weight: 0.60
