Dial Test Indicator, Vert, 0 to 0.200 In MPN:196B1
Free Shipping
In Stock
The Starrett Vertical Dial Test Indicator is a precision tool for measuring and inspecting parts with accuracy. Its 0-0.200 inch range and 0.001 inch graduations make it ideal for checking surface finish, straightness, and flatness in a variety of applications. Suitable for use in manufacturing, quality control, and maintenance, this indicator features a long-form calibration certificate and includes contact points and an adaptor. Its compact size and mechanical operation make it easy to use in tight spaces, while its continuous reading dial provides quick and accurate measurements. Perfect for aerospace, automotive, and industrial applications.
Top product features:
- Long Form Calibration Certificate is included
- Continuous reading is available
- Contact points and adaptor are included
Top product applications:
- Quality control in manufacturing
- Checking the accuracy of machine tools
- Measuring the movement of mechanical components

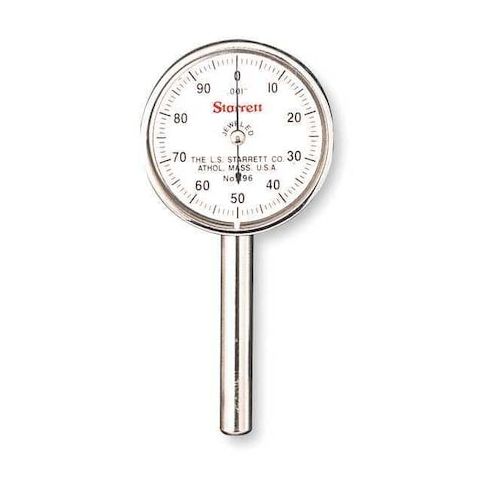

The STARRETT 196B1 is a mechanical back plunger dial indicator from the 196 series for inch measurements from 0 to 0.200 in. It has 0.001 in graduations, a continuous 0-100 dial reading, and a 1-1/2 in white dial for reading measurement changes. This universal back type indicator uses a straight post arm and includes contact points and an adaptor for setup.
Key Features of the STARRETT 196B1 Back Plunger Dial Indicator:
- Measurement Range: 0 to 0.200 in for indicating variation across a measured surface or part.
- Graduations: 0.001 in for fine incremental readings.
- Dial Reading: 0-100 continuous dial with 0.1 in per revolution.
- Indicator Style: Back plunger design with universal back configuration.
- Dial Size and Color: 1-1/2 in white dial for clear visual reference.
- Contact Point Diameter: 0.375 in.
- Shank Diameter: 1/4 in (6.3 mm).
- Bearing Type: Plain bearing mechanical operation.
- Finish: Satin chrome finish on the indicator body.
- Included Accessories: Supplied with contact points and adaptor.
- Included Documentation: Certificate of inspection included.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.50
- Package Height: 1.60
- Package Weight: 0.10
