Alignment Clamp Set w/2ZUH4 Indicator MPN:S668DZ
Free Shipping
In Stock

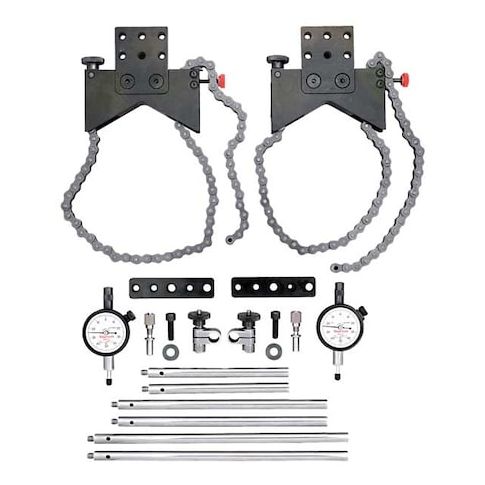

The Starrett Alignment Clamp Set with 2ZUH4 Indicator is a precision tool for ensuring accurate shaft alignment in industrial applications. This comprehensive set includes a case, chain clamp, extension plate, and three indicator posts for measuring alignment distances up to 7 1/2 inches. The stainless steel indicator posts provide durability and resistance to corrosion, while the aluminum clamps offer a lightweight and corrosion-resistant solution. Suitable for use in a variety of industries, including manufacturing, power generation, and oil and gas, this alignment clamp set ensures accurate alignment for optimal performance and extended equipment lifespan.
Top product features:
- Alignment Clamp Set includes 2 clamps for securing shafts up to 7 1/2 inches in diameter.
- The set includes an extension plate for reaching alignment targets at greater distances.
- The Alignment Clamp Set comes with a dial indicator that can read measurements from 0 to 50 degrees.
Top product applications:
- Machine Maintenance
- Industrial Equipment Setup
- Shaft Alignment
The STARRETT S668DZ is a shaft alignment clamp set used for aligning motors, pumps, compressors, and similar equipment. It is designed to address radial and angular misalignment problems and includes two 81-141J dial indicators for measurement. The set uses lightweight black anodized aluminum clamps with a heavy-duty steel roller chain and comes packed in a case.
Key Features of the STARRETT S668DZ Shaft Alignment Clamp Set:
- Application: Used for shaft alignment on motors, pumps, compressors, and related equipment.
- Misalignment Capability: Addresses both radial and angular misalignment.
- Maximum Shaft Diameter: Heavy-duty roller chain accommodates shafts up to 7-1/2 in diameter.
- Clamp Material: Aluminum clamp construction with black anodized finish.
- Included Indicators: Supplied with (2) Starrett 81-141J dial indicators.
- Indicator Type: Dial indicators with 0.25 in range and 0-50-0 balanced reading.
- Indicator Posts: Includes 3 stainless steel posts with 3/8 in diameter
- post lengths include 5 in, 7-7/16 in, and 9 in.
- Extension Plate: Included to provide added radial clearance.
- Includes: Case, chain clamp, extension plate, and posts.
- Number of Clamps: 2 clamps included in the set.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.60
- Package Width: 3.80
- Package Height: 16.00
- Package Weight: 7.20
