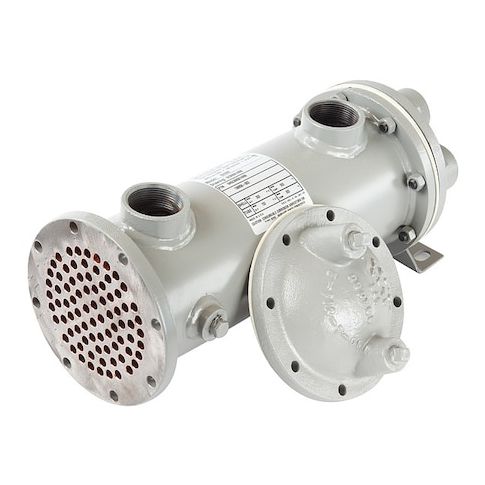

Shell/Tube Heat Exchanger, Copper, 24"L MPN:SX2000 05024
Shell/Tube Heat Exchanger, Copper, 24"L
This Shell/Tube Heat Exchanger is a high-performance solution for efficient heat dissipation in a variety of applications. Designed for use with water and oil, it offers a heat dissipation capacity of 730,000 BtuH for water and 65,000 BtuH for oil, making it ideal for industrial processes, chemical plants, and power generation facilities. The copper tubes and carbon steel shell provide excellent heat transfer and durability, while the compact design saves space and reduces installation costs. Suitable for use with a range of fluids, including jacket water and lube oil, this heat exchanger is a reliable choice for demanding applications.
Top product features:
- Copper tubes provide high heat transfer efficiency.
- The shell and tube design allows for four passes, increasing heat dissipation capacity.
- The heat exchanger is compatible with fluids such as jacket water and lube oil.
Top product applications:
- Cooling systems for large industrial equipment
- Heat exchangers for lubrication oil in heavy machinery
- High-capacity water chillers for commercial or industrial use
Heat Exchanger, Heat Dissipation Capacity for Water 730,000 BtuH, Heat Dissipation Capacity for Oil 65,000 BtuH, Total Surface Area 16 sq ft, Shell Outside Diameter 8 in, Tube Length 24 in, Shell Material Carbon Steel, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Fluids, Jacket Water, Lube Oil
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.30
- Package Width: 10.60
- Package Height: 11.90
- Package Weight: 55.00
Product info last updated on February 8, 2026 5:31am UTC
Category: HVACR and Appliance Controls
