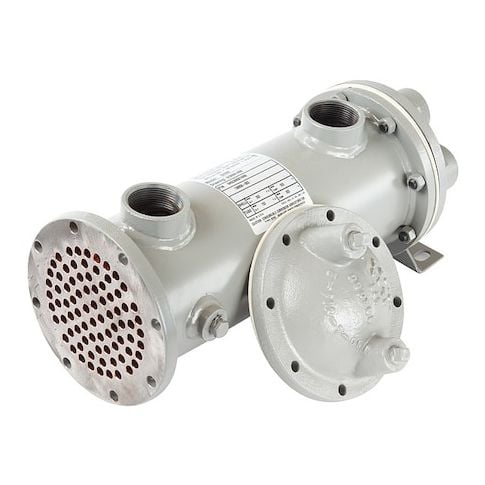

Shell/Tube Heat Exchanger, Copper, 36"L MPN:SX2000 06036
Shell/Tube Heat Exchanger, Copper, 36"L
Maximize heat dissipation and efficiency in your industrial processes with this high-performance Shell/Tube Heat Exchanger. Built to withstand demanding conditions, it features a copper tube and carbon steel shell, capable of handling 1,390,000 BtuH of water and 145,000 BtuH of oil. Ideal for applications such as chemical processing, oil refining, and power generation, this heat exchanger offers improved heat transfer, reduced energy consumption, and increased productivity. Its compact design and durable construction make it a reliable choice for a wide range of industries, ensuring optimal performance and efficiency in even the most challenging environments.
Top product features:
- Copper tubes provide high thermal conductivity for efficient heat dissipation.
- The shell and tube design allows for a large heat transfer area of 34 sq ft.
- Four passes enable efficient heat exchange and improved fluid compatibility.
Top product applications:
- Cooling systems for industrial machinery
- Chiller systems for commercial buildings
- Heat transfer systems for chemical processing plants
Heat Exchanger, Heat Dissipation Capacity for Water 1,390,000 BtuH, Heat Dissipation Capacity for Oil 145,000 BtuH, Total Surface Area 34 sq ft, Shell Outside Diameter 8 in, Tube Length 36 in, Shell Material Carbon Steel, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Fluids, Jacket Water, Lube Oil
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.00
- Package Width: 10.50
- Package Height: 11.50
- Package Weight: 105.00
Product info last updated on January 29, 2026 12:10pm UTC
Category: HVACR and Appliance Controls
