Heat Exchanger, Shell And Tube, 330K BTU MPN:SN503003024005

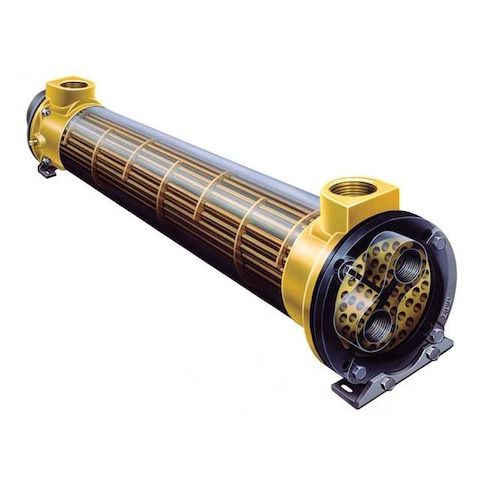

Heat Exchanger, Shell And Tube, 330K BTU
This high-performance Shell and Tube Heat Exchanger is designed for efficient heat dissipation in a variety of applications. With a heat dissipation capacity of 330,000 BTU/H for water and 56,000 BTU/H for oil, it's ideal for use in industrial processes, HVAC systems, and chemical processing. Constructed from brass and copper for durability and reliability, it can withstand high pressures and temperatures. The unit's compact size and four-pass design make it suitable for space-constrained installations. Its versatility and performance make it a reliable choice for industries such as HVAC, oil and gas, and chemical processing.
Top product features:
- Heat dissipation capacity for water 330,000 BtuH
- Heat dissipation capacity for oil 56,000 BtuH
- Total surface area 7.4 sq ft
Top product applications:
- Chemical Processing: The heat exchanger's high heat dissipation capacity for water and oil makes it suitable for chemical processing applications where efficient heat transfer is critical.
- HVAC Systems: The product's ability to handle high temperatures and pressures makes it a good fit for HVAC systems where heat exchange is necessary to regulate temperature and humidity.
- Power Generation: The heat exchanger's high heat transfer capacity and compatibility with steam, oil, and water make it a suitable choice for power generation applications, such as cooling systems for power plants.
Heat Exchanger, Heat Dissipation Capacity for Water 330,000 BtuH, Heat Dissipation Capacity for Oil 56,000 BtuH, Total Surface Area 7.4 sq ft, Shell Outside Diameter 3 1/8 in, Tube Length 27 1/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 6.70
- Package Height: 7.60
- Package Weight: 19.00
