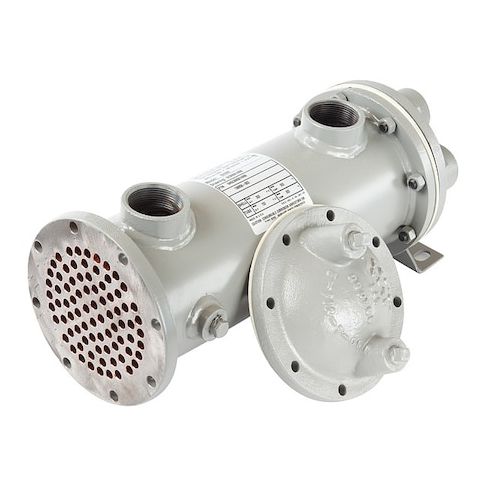

Shell/Tube Heat Exchanger, Copper, 72"L MPN:SX2000 08072
Shell/Tube Heat Exchanger, Copper, 72"L
This Shell/Tube Heat Exchanger is a high-performance solution for efficient heat dissipation in various industrial applications. With a heat dissipation capacity of 3,700,000 BtuH for water and 750,000 BtuH for oil, it effectively transfers heat between fluids. The copper tubes and carbon steel shell ensure durability and reliability. Suitable for use with fluids, jacket water, and lube oil, this heat exchanger is ideal for applications in chemical processing, power generation, and oil and gas industries. Its compact design and high surface area make it an excellent choice for space-constrained environments, providing efficient heat transfer and process optimization.
Top product features:
- Copper tubes provide high heat transfer efficiency for water applications.
- The heat exchanger has a total surface area of 136.7 sq ft for efficient heat dissipation.
- The unit has four passes to increase heat transfer and reduce fluid flow resistance.
Top product applications:
- Cooling systems for industrial machinery
- Process oil cooling systems
- Heat recovery systems for jacket water
Heat Exchanger, Heat Dissipation Capacity for Water 3,700,000 BtuH, Heat Dissipation Capacity for Oil 750,000 BtuH, Total Surface Area 136.7 sq ft, Shell Outside Diameter 8 in, Tube Length 72 in, Shell Material Carbon Steel, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Fluids, Jacket Water, Lube Oil
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 90.00
- Package Width: 20.00
- Package Height: 18.00
- Package Weight: 405.00
Product info last updated on January 22, 2026 12:01pm UTC
Category: HVACR and Appliance Controls
