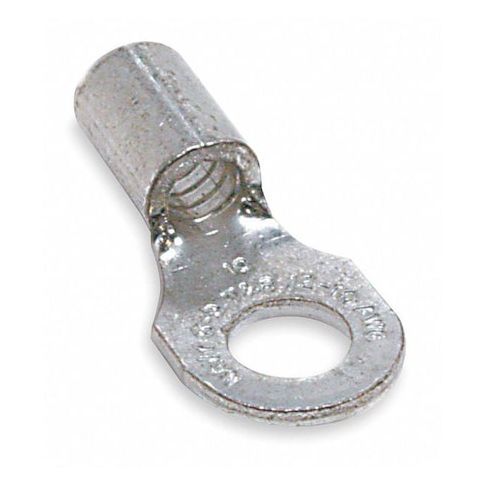

Ring Terminal, 5/16 in Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only MPN:B14-516
Ring Terminal, 5/16 in Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only
The Sta-Kon Ring Terminal is a reliable and durable solution for connecting copper conductors. Its crimp termination style ensures a secure and long-lasting connection, while its non-insulated design allows for easy identification of the conductor. With a maximum operating temperature of 221°F and a voltage rating of 600V, this terminal is suitable for a wide range of applications, including heavy-duty industrial use and commercial electrical installations. Its compact design and compatibility with copper conductors make it an ideal choice for use in tight spaces and high-traffic areas, providing a reliable and efficient connection.
Top product features:
- Crimp termination only for secure and reliable connections
- Serrated barrel for easy crimping and reduced risk of wire damage
- Tin-coated copper contact for high conductivity and corrosion resistance
Top product applications:
- Wire harness construction
- Automotive electrical connections
- Electrical panel building and repair
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 18 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.5 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.3 in, Barrel Style Serrated Barrel, Compatible with Product Type Copper Conductors, Hole Spacing 0.38 in, Insulation Type Non-Insulated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.60
- Package Width: 1.60
- Package Height: 3.60
- Package Weight: 0.29
Product info last updated on January 13, 2026 1:58pm UTC
Category: Electrical Connectors
