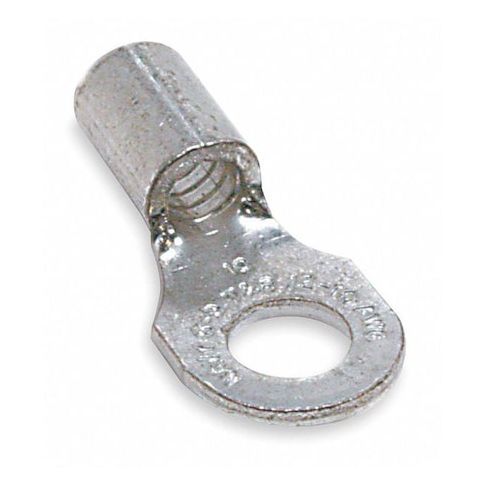

Ring Terminal, #8 Stud Size, 16 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK MPN:A18-8
Ring Terminal, #8 Stud Size, 16 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK
This Sta-Kon Ring Terminal is a reliable and efficient solution for electrical connections. With a crimp termination style and 16 AWG size, it's perfect for a wide range of applications, including copper conductor connections. The ring terminal's maximum operating temperature of 221 degrees F and maximum voltage of 600 V make it suitable for use in various industries, from automotive to industrial settings. Its CSA certification and UL listing ensure compliance with safety standards. The ring terminal's compact size and easy crimping make it a convenient choice for quick connections, reducing downtime and increasing productivity.
Top product features:
- Crimp termination allows for secure and reliable connections
- Tin contact finish provides corrosion resistance and conductivity
- Serrated barrel design enables easy wire installation
Top product applications:
- Wiring harness for automotive applications
- Electrical connections in industrial machinery
- Household appliance wiring
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.32 in, Barrel Style Serrated Barrel, Compatible with Product Type Copper Conductors, Hole Spacing 0.27 in, Insulation Type Non-Insulated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.70
- Package Width: 1.70
- Package Height: 3.70
- Package Weight: 0.20
Product info last updated on February 24, 2026 8:23pm UTC
Category: Electrical Connectors
