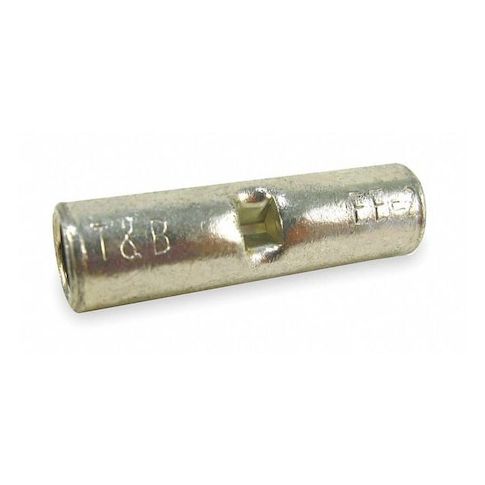

Butt Splice Wire Connector, 14 AWG Max, Metallic, None Insulation, 600 V, 100 PK MPN:2B-14
Butt Splice Wire Connector, 14 AWG Max, Metallic, None Insulation, 600 V, 100 PK
The Sta-Kon Butt Splice Wire Connector is a reliable and efficient solution for connecting wires in a variety of applications. This metallic connector is designed for use in high-voltage systems, with a maximum operating temperature of 302°F and a maximum voltage rating of 600V. The crimp connection ensures a secure and durable bond, while the copper contacts and tin-plated body provide excellent conductivity and corrosion resistance. Suitable for use in industrial, commercial, and residential settings, this connector is ideal for electrical contractors, installers, and maintenance personnel who require a reliable and easy-to-use wire splicing solution.
Top product features:
- Crimps wire connections for secure and reliable electrical connections
- Has a maximum operating temperature of 302 Degrees F for high-temperature applications
- Connects wires of 14 AWG maximum size for easy and efficient installation
Top product applications:
- Wire harness assembly for automotive applications
- Electrical connections in industrial control panels
- Construction and building wiring installations
Splice Connector, Connection Type Crimp, Insulation Material None, Insulation Color Bare, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 18 AWG, Maximum Wire Size 14 AWG, Standards UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 0.63 in, Seam Style Brazed, Barrel Inside Diameter 0.16 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4002, WT110M, WT111M, WT112M, WT2000
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.70
- Package Width: 1.70
- Package Height: 3.70
- Package Weight: 0.30
Product info last updated on January 15, 2026 7:04am UTC
Category: Electrical Connectors
