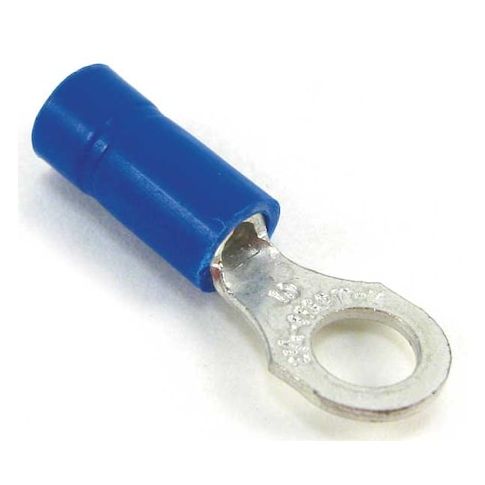

Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 100 PK MPN:14RB-8
Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 100 PK
This high-quality ring terminal from Sta-Kon is designed for use in a wide range of applications, including electrical connections and wire harnessing. With its #8 stud size and 14 AWG rating, it provides a secure and reliable connection for copper conductors. The vinyl insulation and crimp termination ensure durability and long-lasting performance, even in high-temperature environments up to 221°F. CSA certified and UL listed, this product meets strict industry standards for safety and quality. Ideal for use in automotive, industrial, and commercial settings, this ring terminal provides a convenient and effective solution for electrical connections.
Top product features:
- Crimps onto wire for secure termination
- Provides partial coverage of the wire for insulation
- Has a maximum operating voltage of 600 V for safe use
Top product applications:
- Electrical wiring for residential or commercial construction projects
- Automotive electrical systems for custom or high-performance vehicle builds
- Marine electrical systems for boats and watercraft
Ring Terminal, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 18 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.54 in, Barrel Style Brazed Serrated, Compatible with Product Type Copper Conductors, Hole Spacing 0.27 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.70
- Package Width: 1.70
- Package Height: 3.70
- Package Weight: 0.29
