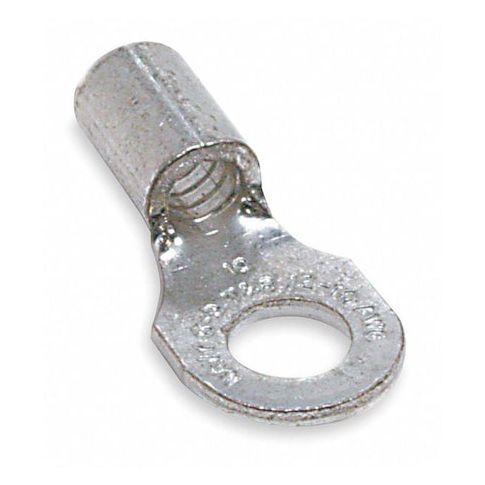

Ring Terminal, 5/16 in Stud Size, 10 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only MPN:C10-516
Ring Terminal, 5/16 in Stud Size, 10 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only
This Sta-Kon ring terminal is a reliable solution for electrical connections, featuring a 5/16 in stud size and 10 AWG wire capacity. The crimp termination ensures secure and efficient connections, while the bare insulated design provides optimal conductivity. Suitable for use in a variety of applications, including copper conductors, this terminal is CSA certified and UL listed for safety and reliability. With a maximum operating temperature of 221 degrees F and a voltage rating of 600 V, it is ideal for use in industrial, commercial, and residential electrical systems. Its compact design and easy installation make it a convenient choice.
Top product features:
- Crimp termination only for secure wire connection
- Serrated barrel for easy wire installation
- Tin contact finish for corrosion resistance
Top product applications:
- Electrical Panel Connections
- Automotive Wiring Harnesses
- Heavy-Duty Equipment Wiring
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.5 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed E9809, Barrel Length 0.35 in, Barrel Style Serrated Barrel, Compatible with Product Type Copper Conductors, Hole Spacing 0.38 in, Insulation Type Non-Insulated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.60
- Package Width: 1.70
- Package Height: 3.60
- Package Weight: 0.29
Product info last updated on February 1, 2026 6:48am UTC
Category: Electrical Connectors
