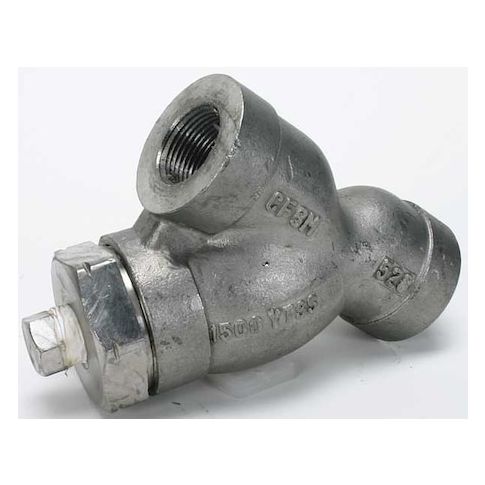

Y Strainer, 1" Pipe, FNPT x FNPT, Stainless Steel, 3500 psi at 100 Degrees F MPN:0100-1500Y1TT-1
Y Strainer, 1" Pipe, FNPT x FNPT, Stainless Steel, 3500 psi at 100 Degrees F
This high-pressure Y strainer is designed for demanding applications, featuring a 1-inch pipe size and maximum pressure of 3,500 psi at 100°F. Constructed from durable 304 stainless steel, it withstands extreme temperatures up to 1,100°F and is suitable for use with various liquids and gases, including oil, paper pulp, and steam. The strainer's perforated screen with 0.0313-inch openings ensures efficient flow rates of up to 3 gallons per minute, making it ideal for industrial settings, such as chemical processing, pulp and paper mills, and power generation facilities. Its compact design and easy maintenance make it a reliable choice for critical applications.
Top product features:
- Blow off port allows for easy removal of debris and contaminants
- Perforated screen with 0.0313 in openings provides high filtration efficiency
- Stainless steel housing and screen material ensure resistance to corrosion and durability
Top product applications:
- Oil Filtration
- Gas Filtration
- Liquid Filtration
Y Strainer, Pipe Size 1 in, Maximum Pressure at 100 deg F 3,500 psi, Length 6 3/8 in, Height 4 7/8 in, Blow Off Port 1/2 in, Screen Material 304 Stainless Steel, Perforated Screen Size 0.0313 in, Mesh Size Not Applicable, Housing Material Stainless Steel, Class 1500, Flow Rate 3 gpm, For Use With Gas, Liquid, Oil, Paper, Pulp, Steam, Water, Includes Screen Screen Included, Maximum Pressure 3,500 psi, Maximum Temperature 1,100 Degrees F, Port 1 Connection Size 1 in, Port 1 Connection Type NPT
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.50
- Package Height: 7.40
- Package Weight: 5.64
Product info last updated on February 1, 2026 7:57pm UTC
Category: Filtration
