2-1/2" Wafer Flange Stainless Steel Double Disc Check Valve MPN:0250-600WTTTM-T

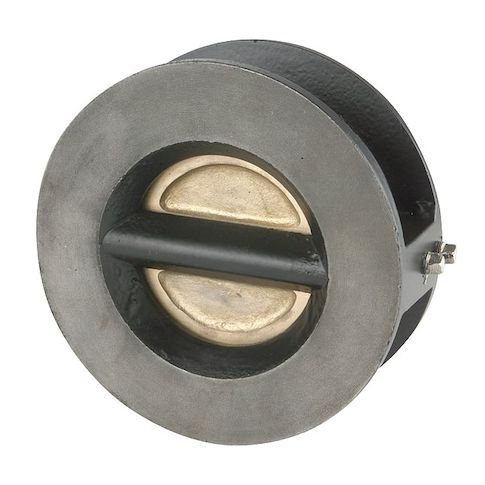

2-1/2" Wafer Flange Stainless Steel Double Disc Check Valve
The SSI 2-1/2in Wafer Flange Stainless Steel Double Disc Check Valve is a reliable and efficient solution for various industrial applications. This valve is perfect for use in high-temperature environments, with a maximum temperature rating of 600 Degrees F, making it suitable for steam and water applications. Its stainless steel construction ensures durability and resistance to corrosion. The double disc design provides a tight seal and prevents backflow, ensuring safe and reliable operation. Ideal for use in horizontal or vertical orientations, this valve is suitable for a wide range of industries, including chemical, oil and gas, and power generation.
Top product features:
- The valve has a double disc design for increased flow control and sealing capability.
- The valve is designed for inline installation, allowing for easy integration into existing piping systems.
- The valve is constructed with stainless steel for high-temperature resistance and durability.
Top product applications:
- Cooling systems
- Steam systems
- Water treatment systems
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Double Disc, Body Material - Valves Stainless Steel, Pipe or Tube Size 2 1/2 in, Connection Type Flange x Flange, Cracking Pressure 0.300 to 1.250 psi, Mounting Orientation Horizontal, Vertical, Seal Material Metal, Max. Temp. - Valves 600 Degrees F, Min. Temp. - Valves 60 Degrees F, Max. Water Pressure - Valves 1,480 psi @ 600 Degrees F, Max. Steam Pressure - Valves 1480 psi WSP, Seat Material Stainless Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 5.50
- Package Height: 7.00
- Package Weight: 9.45
Product info last updated on January 19, 2026 10:24pm UTC
Category: Pipes, Valves and Fittings
