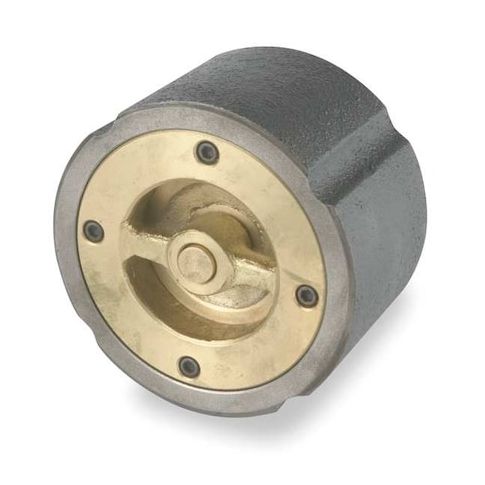

6" Wafer Flange Cast Iron Silent Check Valve MPN:0600-125WCITM-T
The 6in Wafer Flange Cast Iron Silent Check Valve from SSI is a reliable solution for various industrial applications. Designed for inline use, this valve ensures smooth and quiet operation, minimizing noise and vibrations. Suitable for horizontal or vertical mounting, it can handle temperatures up to 300°F and pressures up to 200 psi. Ideal for use in water and steam systems, this valve features a stainless steel seat and metal seal for durability and resistance to corrosion. Its compact design and easy installation make it a great choice for a wide range of applications, including HVAC, chemical processing, and power generation.
Top product features:
- Silent operation to minimize noise and vibration
- Cast iron construction for durability and resistance to corrosion
- Stainless steel seat for reliable sealing and resistance to wear
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- Chemical Processing Plants
This 6 in wafer flange spring-assisted check valve is an inline valve for use in process piping backflow-control applications. It features a cast iron body, a spring-assisted check valve design, supports horizontal or vertical mounting, and is rated for flow up to 3,500 gpm.
Key Features:
- 6 in nominal valve and pipe size
- 125 class wafer flange connection
- flange x flange connection type
- Cast iron body
- Inline body design with swing check mechanism
- CF8M stainless steel check mechanism and seal material
- EPDM seal with stainless steel seat
- 316 stainless steel spring
- Cracking pressure: 0.300 to 1.250 psi
- Maximum operating pressure: 200 psig
- Maximum water pressure: 200 psi at 250 degrees F
- Maximum steam pressure: 200 psi WSP
- Operating temperature range: 60 degrees F to 300 degrees F
- Mounting orientation: horizontal, vertical
- Overall length: 8.75 in
- width: 5 9/16 in
- overall height: 8 3/4 in
- Standards: API598, ASME Sec VIII
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.60
- Package Width: 14.60
- Package Height: 15.90
- Package Weight: 46.11
