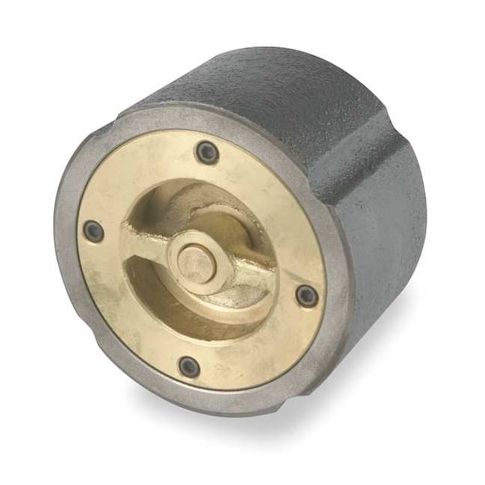

Silent Check Valve, Cast Iron, 8", Flange MPN:0800-125WCIBM-T

• This 8 in silent check valve is intended for inline check-valve applications involving flow reversal. It features a cast iron body with flange x flange connections for process piping service and can be mounted in horizontal or vertical positions. The single-flow design has a cracking pressure of 0.300 to 1.250 psi and a rated flow of 6,000 gpm.

  Key Features:

  • Valve type: Silent check valve with inline body design
  • Size: 8 in nominal valve size with 8 in pipe connection
  • Body material: Cast iron
  • Connection: Flange x flange, ANSI Flange Class 125
  • Check mechanism: Swing mechanism with bronze check mechanism material
  • Seat and seal materials: Bronze seat with EPDM seal
  • seal material also listed as metal/bronze
  • Spring material: 316 stainless steel
  • Pressure ratings: 200 psi operating pressure, 200 psi WSP maximum steam pressure, 200 psi at 250 degrees F maximum water pressure
  • Temperature range: 60 degrees F minimum to 300 degrees F maximum
  • Flow rating: 6,000 gpm
  • Mounting orientation: Horizontal or vertical
  • Standards: API598, ASME Sec VIII
  • Dimensions: 11 in overall length, 11 in overall height, 6 1/2 in width
