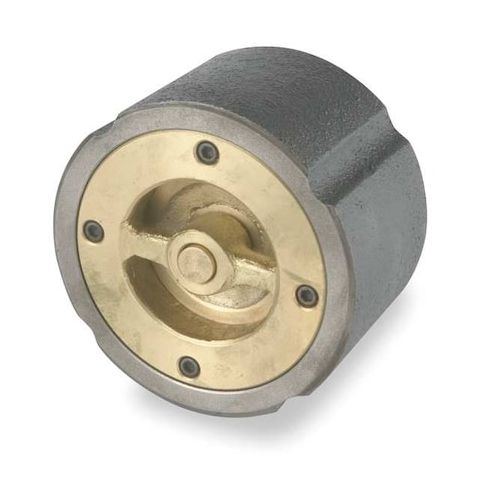

Silent Check Valve, Cast Iron, 8", Flange MPN:0800-125WCITM-T
The Silent Check Valve from SSI is a reliable and efficient solution for various industrial applications. Designed for inline use, this cast iron valve features a single flow design and silent mechanism, reducing noise and vibration. Suitable for use in horizontal or vertical orientations, it can handle water and steam pressures up to 200 psi. The valve's stainless steel seat and metal seal ensure long-lasting performance. Ideal for use in water treatment, chemical processing, and power generation, this valve offers a cost-effective and reliable solution for managing fluid flow. Its compact size and durable construction make it a valuable addition to any industrial system.
Top product features:
- Silent operation reduces noise and vibration
- Cast iron body provides durability and resistance to corrosion
- Stainless steel seat ensures a tight seal and long-lasting performance
Top product applications:
- Air conditioning and heating systems
- Industrial piping systems
- Pumping stations and water treatment plants
SSI 0800-125WCITM-T is an 8 in check valve with inline body style for process piping systems. It uses an inline body design for process piping systems involving flow reversal. This valve has a cast iron body, flange x flange connection style, and can be mounted horizontally or vertically.
Key Features:
- Valve type: Check valve with inline body style
- Size: 8 in nominal valve size and pipe size
- Body material: Cast iron
- Connection: Flange x flange, 125 Class wafer flange
- ANSI flange class: Class 125
- Check mechanism: Swing with CF8M stainless steel mechanism
- Seal and seat materials: EPDM seal, stainless steel seat, metal seal material listed
- Spring material: 316 stainless steel
- Cracking pressure: 0.300 to 1.250 psi
- Flow rating: 6,000 gpm
- Pressure ratings: 200 psi maximum operating pressure
- 200 psi at 250 degrees F maximum water pressure
- 200 psi WSP maximum steam pressure
- Temperature range: 60 degrees F minimum to 300 degrees F maximum
- Mounting orientation: Horizontal or vertical
- Full flow: Yes
- Standards: API 598, ASME Section VIII
- Overall dimensions: 11 in length, 11 in height, 6 1/2 in width
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 16.00
- Package Height: 22.60
- Package Weight: 97.00
