Miniature Circuit Breaker, E FRAME Series, 100A, 2 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB24100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6401297

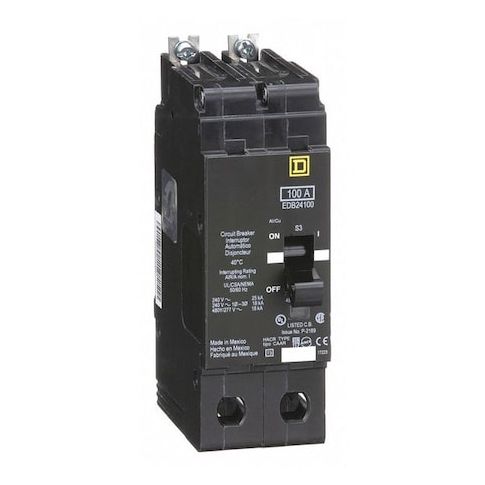

Miniature Circuit Breaker, E FRAME Series, 100A, 2 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical systems with the Square D E FRAME Series Miniature Circuit Breaker, designed for use in Square D NF Panelboards. This 100A, 2-pole breaker provides reliable protection against overloads and short circuits, with a maximum interrupting capacity of 25kA at 120V AC and 18kA at 277/480V AC. Its compact size and bolt-on mounting style make it easy to install, while its toggle actuator ensures smooth and safe operation. Suitable for a variety of applications, including commercial and industrial settings, this breaker offers peace of mind and helps ensure a safe and efficient electrical system.
Top product features:
- Breaks at 25kA at 120V AC
- Protects against overloads with a 100A rating
- Has a 2-pole design for single-phase applications
Top product applications:
- Commercial electrical panels
- Industrial electrical panels
- Residential electrical panels
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 1.96 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.30
- Package Height: 5.00
- Package Weight: 3.50
Product info last updated on February 26, 2026 9:55pm UTC
Category: Circuit Protection
