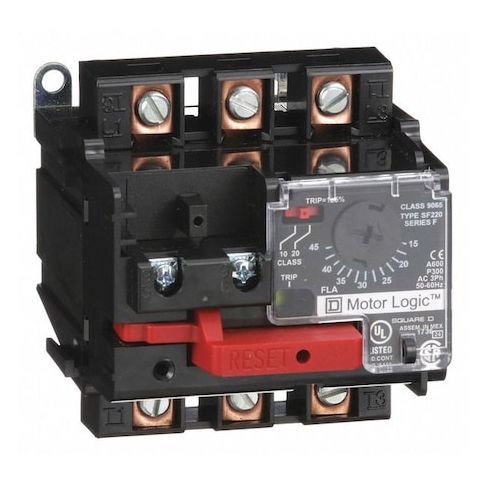

NEMA Overload Relay, 1NC, 15 A Min current, 45 A Max current, 600V AC MPN:9065SF220
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5236402
NEMA Overload Relay, 1NC, 15 A Min current, 45 A Max current, 600V AC
Protect your electrical systems with the Square D NEMA Overload Relay, a reliable and versatile solution for motor protection. This electronic overload relay features a 1NC auxiliary contact form and a maximum overload current setting of 45A, with a minimum current setting of 15A. Suitable for applications in various industries, it offers trip class 10/20 protection and a maximum voltage rating of 600V AC. Ideal for use in motor control applications, including series 9065 Motor Logic Solid State Overload Relays, this overload relay provides reliable protection against motor overloads, reducing downtime and increasing system efficiency.
Top product features:
- Overload protection is provided by an electronic mechanism
- Maximum current can be set to 45 A to prevent overheating
- Manual reset allows the user to restart the relay after an overload condition is cleared
Top product applications:
- Motor protection in industrial applications
- Overload protection for 3-phase motors
- Protection of high-current electrical loads
NEMA Overload Relay, Auxiliary Contact Form 1NC, Maximum Overload Relay Current Setting 45 A, Minimum Overload Relay Current Setting 15 A, Trip Class 10/20, Maximum Voltage Rating 600V AC, NEMA Size 2, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Manual, Includes Thermal Units Not Applicable, Mounting Style Separately Mounted, Compatible with Series 9065 Motor Logic Solid State Overload Relays, Relay Style NEMA, Overload Protection Type Electronic, Phase Three
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 5.50
- Package Height: 5.50
- Package Weight: 1.31
Product info last updated on February 18, 2026 11:58am UTC
Category: Industrial Electrical Controls and Automation
