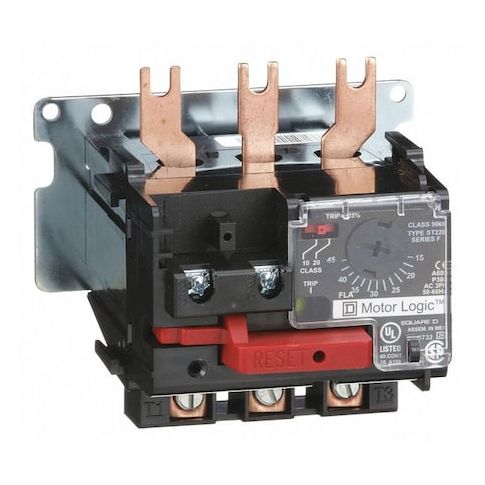

NEMA Overload Relay, 1NC, 15 A Min current, 45 A Max current, 600V AC MPN:9065ST220
Free Shipping
In Stock
Protect your motors from overloads, phase unbalance, and phase loss conditions with the Motor Logic NEMA Overload Relay. Designed for use with Type S NEMA size 2 three-pole starters, this solid-state relay is ambient insensitive and self-powered, making it a reliable choice for industrial applications. With a full load current rating of 15A to 45A and a maximum voltage rating of 600V, this relay is suitable for a wide range of motor protection needs. Its trip-free operation and electrical remote reset feature ensure motor safety and ease of maintenance, making it an ideal solution for industries such as manufacturing, oil and gas, and more.
Top product features:
- Ambient insensitive design allows the relay to function consistently regardless of environmental conditions.
- Self-powered operation eliminates the need for an external power source.
- Trip free operation prevents the motor from overheating due to prolonged overload conditions.
Top product applications:
- Standalone devices
- Type S full voltage non-reversing starters
- Type S combination starters
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This replacement Motor Logic solid state overload relay is for use with Type S NEMA size 2 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 15A to 45A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. Electrical remote reset is available. The visible trip indicator and trip test function make trouble shooting much quicker. This overload relay is 3.51 inches tall, 4.28 inches wide and 3.51 inches deep. Motor Logic SSOLR are UL listed and CSA certified. Separate mount overload relays are UL listed and CSA certified.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.50
- Package Height: 5.40
- Package Weight: 1.21
