Power Distribution Block, Open, 2 Pole, 760 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA265208
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3708512

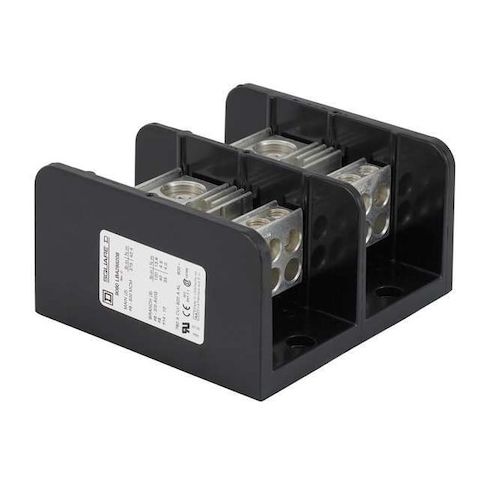

Power Distribution Block, Open, 2 Pole, 760 A Copper, 600 V AC/DC, Surface Mount
This Power Distribution Block is a reliable and efficient solution for managing power in a variety of applications, including commercial and industrial settings. With a maximum current rating of 760 A and a maximum voltage of 600 V AC/DC, it can handle high-power loads with ease. The surface-mount design makes it easy to install and integrate into existing systems. Suitable for use with aluminum or copper conductors, it offers flexibility and versatility in its applications. Ideal for use in electrical panels, switchgear, and other power distribution systems, this block provides a safe and reliable way to manage power.
Top product features:
- Reduces risk of electrical shock and fire with a maximum voltage rating of 600 V AC/DC.
- Provides safe and reliable connections for line conductors with a minimum size of 4 AWG and a maximum size of 500 kcmil.
- Accommodates up to 8 load connections per pole, allowing for flexible and efficient wiring configurations.
Top product applications:
- Main Distribution Panel
- Motor Control Centers
- Switchgear
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 8, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2/0 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 2, Overall Depth 3.13 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 5.90
- Package Height: 3.60
- Package Weight: 1.30
Product info last updated on February 5, 2026 10:59am UTC
Category: Electrical Connectors
