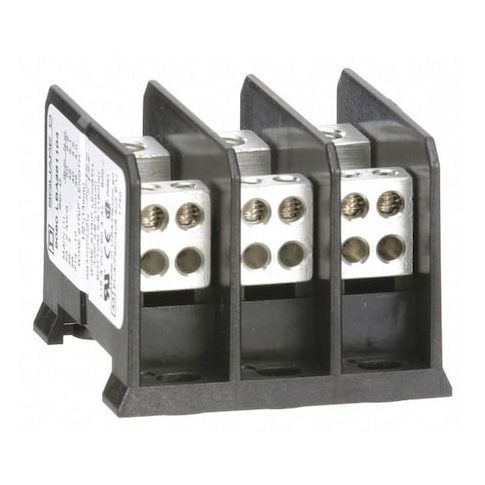

Miniature Power Distribution Block, Open, 3 Pole, 115 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA361104
Free Shipping
In Stock
The Linergy power distribution block is a compact and reliable solution for terminating wires in a variety of applications. Designed to meet NEMA standards, this three-pole block features one lug opening on the line side and four on the load side, accommodating wires from #14 to #2 and #18 to #10. Rated for 115A with copper wire and 90A with aluminum wire, it's ideal for use in electrical panels, switchboards, and other high-demand systems. With its high-impact thermoplastic housing and UL component recognition, this block offers a safe and efficient way to manage power distribution in commercial and industrial settings.
Top product features:
- Three-pole design with one lug opening on the line side and four lug openings on the load side
- Accepts #14 to #2 copper or aluminum wire on the line side and #18 to #10 copper or aluminum wire on the load side
- Rated to 115 amperes with copper wire and 90 amperes with aluminum wire
Top product applications:
- Wire termination
- Branch circuit distribution
- Panel board wiring
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. Each load side lug is rated to accept one #18 to #10 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.50
- Package Height: 1.80
- Package Weight: 0.23
