Molded Case Circuit Breaker, POWERPACT M Series, 800A, 3 Pole, 600V AC, 65kA at 240V AC MPN:MGL36800
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3554013

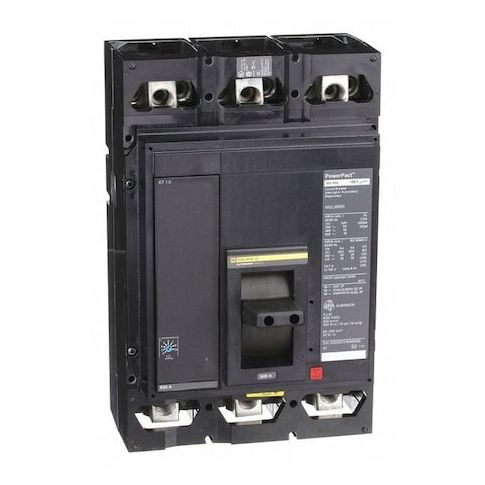

Molded Case Circuit Breaker, POWERPACT M Series, 800A, 3 Pole, 600V AC, 65kA at 240V AC
Protect your equipment and personnel with the POWERPACT M Series Molded Case Circuit Breaker from Square D. This 800A, 3-pole breaker is designed for use with equipment gear and features a high amp trip setting of 8,000A and low amp trip setting of 1,600A. With its electronic trip type and instantaneous trip adjustable feature, you can ensure fast and reliable protection in a variety of applications, including industrial and commercial settings. The breaker's compact size and durable design make it an ideal choice for installations where space is limited.
Top product features:
- Molded case design provides a compact and rugged construction.
- Three-pole configuration allows for simultaneous control of multiple phases.
- Instantaneous trip adjustable feature enables customizable overcurrent protection.
Top product applications:
- Equipment Gear
- Industrial Power Distribution Systems
- Commercial Power Distribution Systems
Molded Case Circuit Breaker, 800 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 18kA at 600V AC, For Use With Equipment Gear, Series MG, High Amp Trip Setting 8,000 A, Low Amp Trip Setting 1,600 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Box Lug, Trip Type Electronic, Phase Three, Instantaneous Trip Adjustable, Phase Connection ABC, Frame Size 800A/M, Circuit Breaker Mounting Style Lug In/Lug Out, Height 12.9 in, Width 8.3 in
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 12.10
- Package Height: 10.70
- Package Weight: 28.45
Product info last updated on March 16, 2026 11:42pm UTC
Category: Circuit Protection
