Power Distribution Block, Open, 1 Pole, 175 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA162104
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3546776

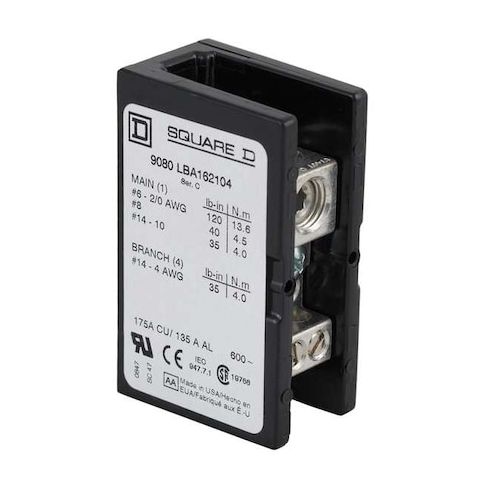

Power Distribution Block, Open, 1 Pole, 175 A Copper, 600 V AC/DC, Surface Mount
The Square D Power Distribution Block is a reliable and efficient solution for managing power in a variety of applications. Designed for use with copper conductors, this surface-mount block features a single pole and can handle up to 175A of current at 600V AC/DC. With a compact design and a range of wire size options, it's ideal for use in commercial and industrial settings, including data centers, offices, and manufacturing facilities. By providing a safe and organized way to distribute power, this block helps to reduce the risk of electrical shock and fire, ensuring a reliable and efficient power supply.
Top product features:
- Distributes power to a single pole with a maximum current of 175 A.
- Supports line connections up to 2/0 AWG and load connections up to 4 AWG.
- Mounts to a surface, allowing for easy installation.
Top product applications:
- Main Electrical Panel
- Electrical Sub Panel
- Remote Power Distribution Center
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1, Overall Depth 1.78 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.80
- Package Height: 1.20
- Package Weight: 0.22
Product info last updated on March 3, 2026 10:24am UTC
Category: Electrical Connectors
