Power Distribution Block, Open, 3 Pole, 760 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA365212
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3532374

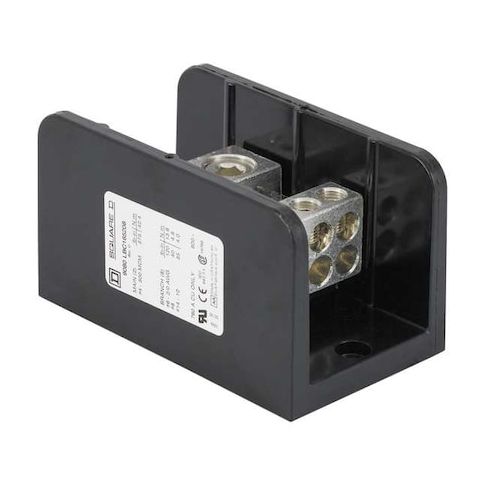

Power Distribution Block, Open, 3 Pole, 760 A Copper, 600 V AC/DC, Surface Mount
The Square D Power Distribution Block is a reliable and efficient solution for managing power distribution in various applications. This 3-pole block is designed for surface mounting and can handle up to 760A of current, making it ideal for high-power systems. It supports both copper and aluminum conductors and features 12 load connections and 2 line connections. The block is suitable for use in commercial and industrial settings, such as data centers, hospitals, and manufacturing facilities, where high reliability and safety are crucial. Its compact design and easy installation make it a convenient choice for power distribution needs.
Top product features:
- Power Distribution Block provides 3 pole connections for power lines.
- The Power Distribution Block has load connections for 12 conductors.
- The Power Distribution Block supports copper conductors up to 760 A.
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Data center electrical distribution systems
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 12, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 3.13 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.90
- Package Width: 6.00
- Package Height: 3.70
- Package Weight: 3.85
Product info last updated on February 4, 2026 9:39am UTC
Category: Electrical Connectors
