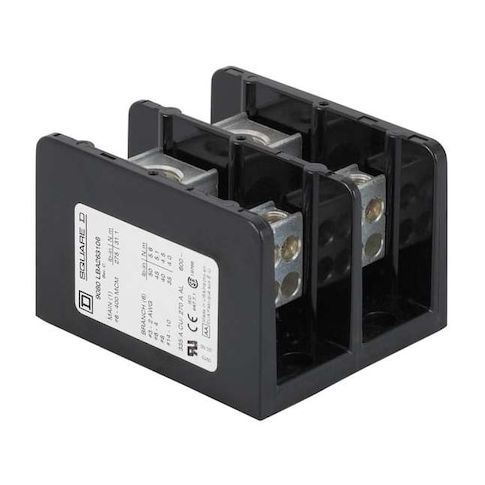

Miniature Power Distribution Block, Open, 2 Pole, 115 A Copper, 600 V AC/DC, Surface Mount MPN:9080LBA261104
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3522626
Miniature Power Distribution Block, Open, 2 Pole, 115 A Copper, 600 V AC/DC, Surface Mount
The Square D Miniature Power Distribution Block is a compact, surface-mount solution for managing power in a wide range of applications. With a maximum current of 115 A and a maximum voltage of 600 V AC/DC, it can handle heavy loads while minimizing space requirements. Suitable for use with aluminum or copper conductors, this block features two poles with line connections on one pole and four load connections on the other, making it ideal for use in industrial control panels, machinery, and other high-power applications. Its compact design and high current capacity make it a reliable choice for demanding power distribution needs.
Top product features:
- Distributes power to 4 load connections per pole
- Accepts copper wire sizes from 14 AWG to 2 AWG for line connections and 18 AWG to 10 AWG for load connections
- Supports a maximum current of 115 A for copper conductors and a maximum voltage of 600 V AC/DC
Top product applications:
- Industrial control panel
- Motor control centers
- Low-voltage power distribution systems
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2 AWG, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 18 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 115 A, Maximum Voltage 600 V AC/DC, Mounting Type Surface Mount, Number of Poles 2
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.80
- Package Height: 1.50
- Package Weight: 0.16
Product info last updated on February 4, 2026 6:03am UTC
Category: Electrical Connectors
