Manual Motor Starter, NEMA M-1, 3 P, 3 Phase, Push Button, 30 A MPN:2510MCG3
Free Shipping
In Stock

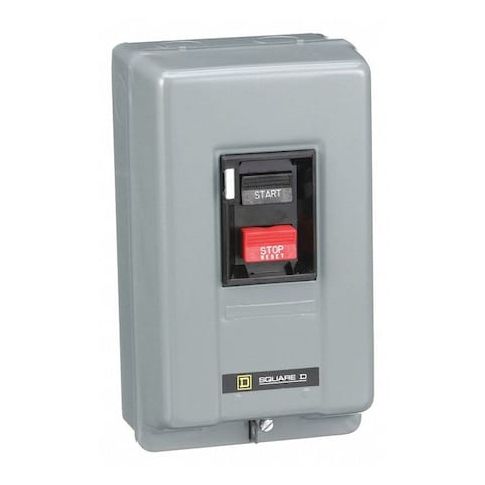

The Square D 2510M Manual Motor Starter is a reliable and efficient solution for small AC motor control. Ideal for use in industrial and commercial installations, this non-reversing starter provides overload protection and On-Off control for fans, conveyors, pumps, and small machine tools. With a NEMA Size M-1 three-pole design and thermal units for overcurrent sensing, this starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC. The starter's compact design and durable sheet steel enclosure make it a great choice for a variety of applications, including manufacturing, HVAC, and material handling.
Top product features:
- Overload protection is provided by three melting alloy thermal units that sense overcurrent conditions.
- Start-Stop push buttons are used for On Off control.
- A NEMA 1 general purpose surface mount enclosure protects the integral horsepower manual starter.
Top product applications:
- Fans
- Conveyors
- Pumps
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.21 lbs. 2510M integral horsepower starters are UL listed and CSA certified.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 5.70
- Package Height: 4.50
- Package Weight: 4.20
