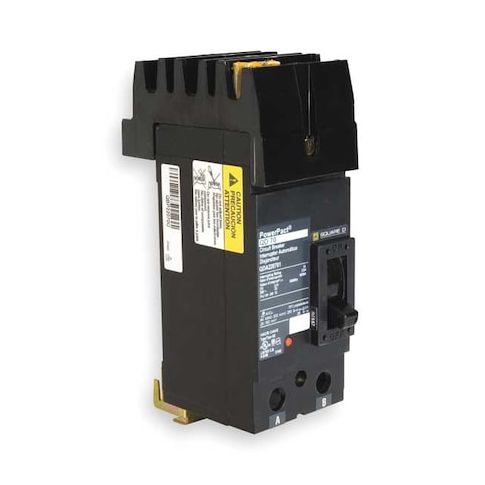

Molded Case Circuit Breaker, POWERPACT Q Series, 225A, 2 Pole, 240V AC, 25kA at 240V AC MPN:QDA222251
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3427584
Molded Case Circuit Breaker, POWERPACT Q Series, 225A, 2 Pole, 240V AC, 25kA at 240V AC
The POWERPACT Q Series 225A Molded Case Circuit Breaker is designed for use with I-Line panelboards, providing reliable and efficient protection for high-amperage circuits. With a high amp trip setting of 2,400A and low amp trip setting of 1,200A, this circuit breaker offers customizable protection for a variety of applications. Its thermal magnetic trip type and 25kA at 240V AC maximum AIR rating make it an ideal choice for demanding electrical systems. Suitable for use in commercial and industrial settings, this circuit breaker is a reliable solution for ensuring safe and efficient electrical distribution.
Top product features:
- Trips at 2,400 A for high-amp situations
- Trips at 1,200 A for low-amp situations
- Has a 25kA interrupting rating at 240V AC
Top product applications:
- Industrial Panelboards
- Commercial Electrical Distribution Systems
- High-Ampacity Electrical Panel Installations
Molded Case Circuit Breaker, 225 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 25kA at 240V AC, For Use With I Line Panelboards, Series QD, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection AB, Frame Size 250A/QD, Circuit Breaker Mounting Style I-Line, Height 6.47 in, Width 3 in, Depth 3.93 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 52 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.60
- Package Width: 7.70
- Package Height: 4.70
- Package Weight: 4.83
Product info last updated on February 10, 2026 6:50am UTC
Category: Circuit Protection
