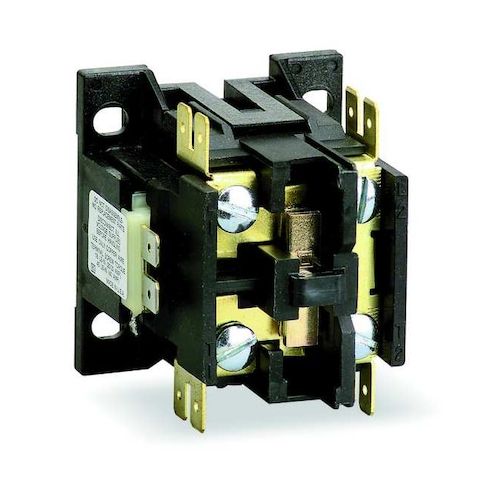

Definite Purpose Magnetic Contactor, 24V AC, 1 P, Non-Reversing, 1 Phase MPN:8910DP31V14

The SQUARE D - 8910DP31V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: The contactor functions as non-reversing where the current flow direction remains constant.
• Coil Voltage: Requires a specific voltage range of 24V AC for effective engagement or disengagement of its electrical circuit.
• Depth: Extends into mounting surface or enclosure up to a depth of 2.22 inches.
• Frequency: Designed to handle number of electrical cycles per second measured at 50/60 Hz
• Full Load Amps-Inductive & Resistive: Rated to manage continuous currents of up to 30 A for inductive loads and up to 40 A for resistive loads within specified conditions.
• Horsepower @ Single Phase -120V & 240V AC : Designed for use with single-phase alternating current systems, capable of managing power outputs of up to 2 hp at 120 volts and up to 3 hp at 240 volts under specified conditions.
• Horsepower @ Three Phase -600 VAC : Intended for use with a three-phase alternating current system, able to manage motor power levels of up to 50 horsepower under specific conditions.
• Number Of Poles : Designed with the ability to switch one circuit within its operational specifications.
