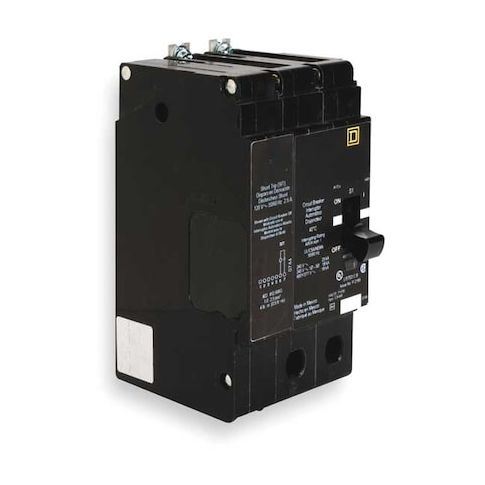

Miniature Circuit Breaker, E FRAME Series, 70A, 2 Pole, 277/480V AC, 25kA at 120V AC MPN:EDB24070SA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3340057
Miniature Circuit Breaker, E FRAME Series, 70A, 2 Pole, 277/480V AC, 25kA at 120V AC
Protect your electrical systems with the Square D E FRAME Series Miniature Circuit Breaker, designed for use with NF Panelboards. This 70A, 2-pole breaker provides reliable protection against overloads and short circuits, ensuring safe operation in commercial and industrial settings. Its shunt trip mechanism allows for easy installation and maintenance, while its bolt-on mounting style makes it easy to integrate into existing systems. Ideal for applications such as lighting, HVAC, and power distribution, this breaker offers a compact design and high operating temperature rating for maximum reliability and performance.
Top product features:
- Shunt trip circuit breaker design allows for remote control and automation of circuit interruption
- Bolt on mounting style allows for easy installation and secure attachment to panelboards
- Terminal connection lug enables quick and reliable wire connections to the circuit breaker
Top product applications:
- Industrial electrical panelboards
- Commercial electrical distribution systems
- Residential electrical panelboards with high power requirements
Miniature Circuit Breaker, Amps 70 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series NF, Phase Single, Series EDB, Max. AIR Rating 18kA at 277/480V AC, For Use With Square D NF Panelboards, Terminal Connection Lug, Frame Size 125A/EDB, Length 5.66 in, Width 2.94 in, Depth 4.05 in, Max. Operating Temp. 104 Degrees F
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 4.70
- Package Height: 4.80
- Package Weight: 2.90
Product info last updated on February 4, 2026 4:12am UTC
Category: Circuit Protection
