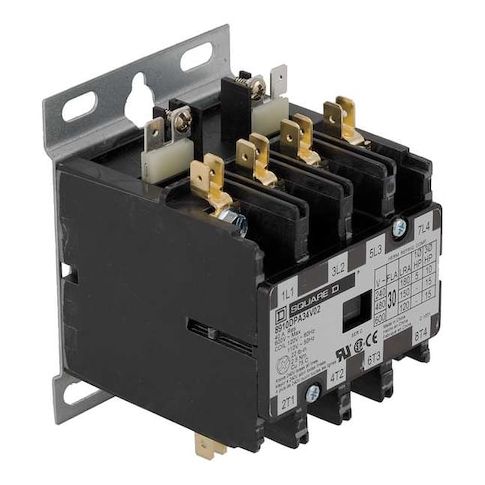

Definite Purpose Magnetic Contactor, 24V AC, 4 P, Non-Reversing, 3 Phase MPN:8910DPA34V14
Free Shipping
In Stock
The SQUARE D - 8910DPA34V14 Definite Purpose Magnetic Contactor is a reliable and efficient industrial electrical device designed for controlling heavy-duty applications. Suitable for use in HVAC, data processing, and manufacturing, this contactor responds to electrical impulses to manage power supply, ensuring smooth and automated machinery operations. Its non-reversing action and high current capacity make it ideal for managing large power outputs, from single-phase systems to three-phase systems. Compliant with CSA, RoHS, and UL Listed standards, this contactor provides a safe and reliable solution for industrial electrical control needs, increasing productivity and reducing downtime.
Top product features:
- Non-Reversing Action The contactor functions with a constant current flow direction.
- Rated for operation within the specified voltage range of 24V AC.
- Compatible with currents up to a maximum of 30A (inductive loads) and up to a maximum of 40A (resistive loads).
Top product applications:
- HVAC
- data processing
- manufacturing
The SQUARE D - 8910DPA34V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.
- Action: Non-Reversing – The contactor functions with a constant current flow direction.
- Coil Voltage: Rated for operation within the specified voltage range of 24V AC.
- Depth: Measures 3.11 inches from front to back.
- Enclosure Type: Open – No additional protective casing is provided around the contactor.
- Frequency: Rated for operation within the specified frequency ranges of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Compatible with currents up to a maximum of 30A (inductive loads) and up to a maximum of 40A (resistive loads).
- Horsepower @ Single Phase & Three Phase - Suitable for managing power outputs ranging from minimums such as those found in single-phase systems operating at around two horsepower,120 volts,up through larger three-phase systems that can reach upwards towards fifty horsepower, 600 volts.
- NEMA Enclosure Rating: No Enclosure – There's no specific protection against environmental conditions such as dust or water provided by its casing
- Poles Number : Has the capability to switch four circuits simultaneously
- Safety Standards Compliance : Complies with CSA, RoHS, and UL Listed standards. Performance may vary based on usage conditions.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 3.20
- Package Height: 4.00
- Package Weight: 1.24
